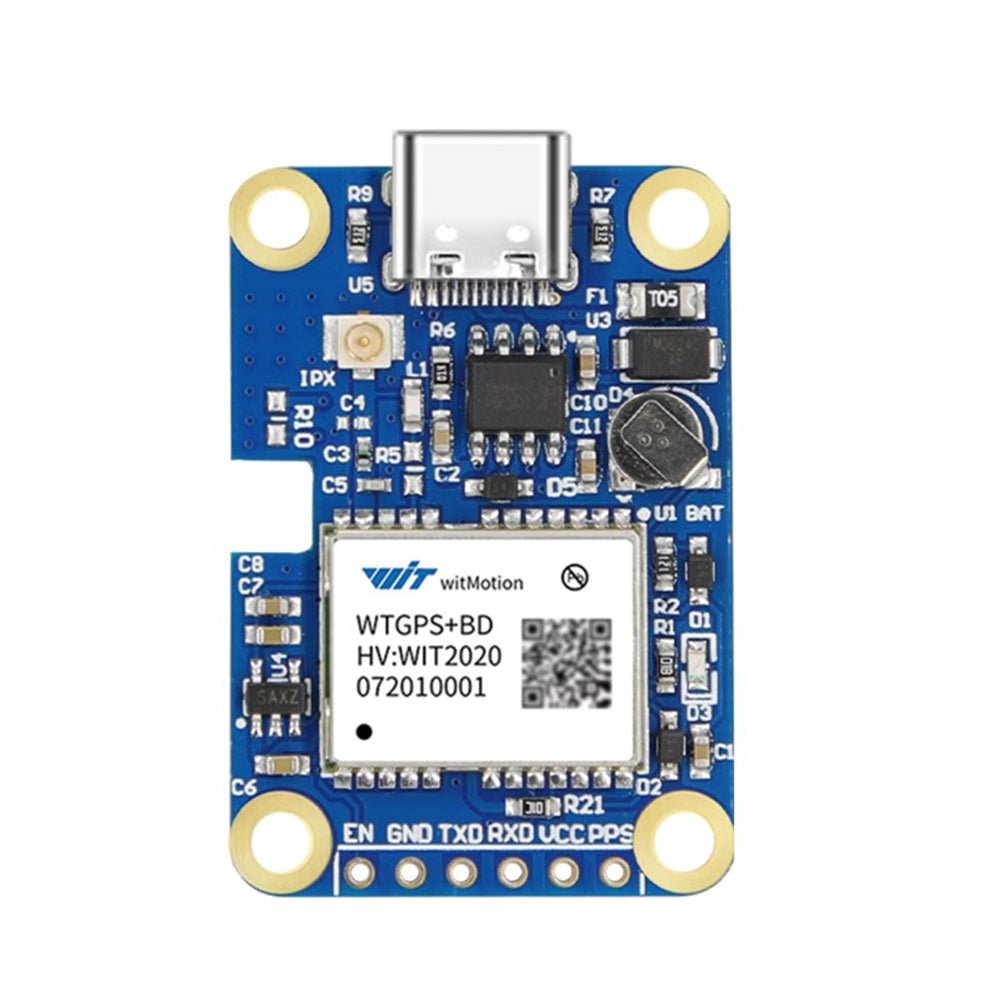

WitMotion WTGPS Sensor
WitMotion

WitMotion WTGPS Sensor

$45.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

WitMotion offers the WitMotion WTGPS Sensor, a sensor suited to demanding robotics and automation workloads. WitMotion WTGPS Sensor specifications include Operating Temperature of -45°C ~ +80°C, Storage Temperature of -45°C ~ +145°C, and Dimensions of 39.9 × 32.9 × 15.9 mm. WitMotion WTGPS Sensor gives engineers a practical sensor option for lab validation and field rollout

Delivery / Pickup Options
Order summaryUSD
Merchandise$45.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$65.34
Estimated total before tax$110.34

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

5V (or 3.3V~5V)
Supply Voltage
0.1 kg
Net weight
39.9 × 32.9 × 15.9 mm
Dimensions
225mW (5V * 45mA)
Power Consumption

All Specifications

BrandWitMotion
CategorySensor
AvailabilityBackorder
Net weight0.1 kg
Dimensions39.9 × 32.9 × 15.9 mm
Operating Temperature-45°C ~ +80°C
Storage Temperature-45°C ~ +145°C
Weight50g
ProtocolNMEA0183
Update Rate10Hz
TTFF Cold Start≤ 32s
TTFF Hot Start≤ 1s
TTFF Reacquisition≤ 2s
Sensitivity – Tracking-168dBm
Sensitivity – Reacquisition-160dBm
Sensitivity – Cold Start-148dBm
Max Altitude18000m
Max Velocity515m/s
Max Acceleration2g
Positioning Accuracy< 1.5m (CEP50)
Velocity Accuracy< 0.1m/s
INS Positioning Accuracy3% of distance (dead‑reckoning)
