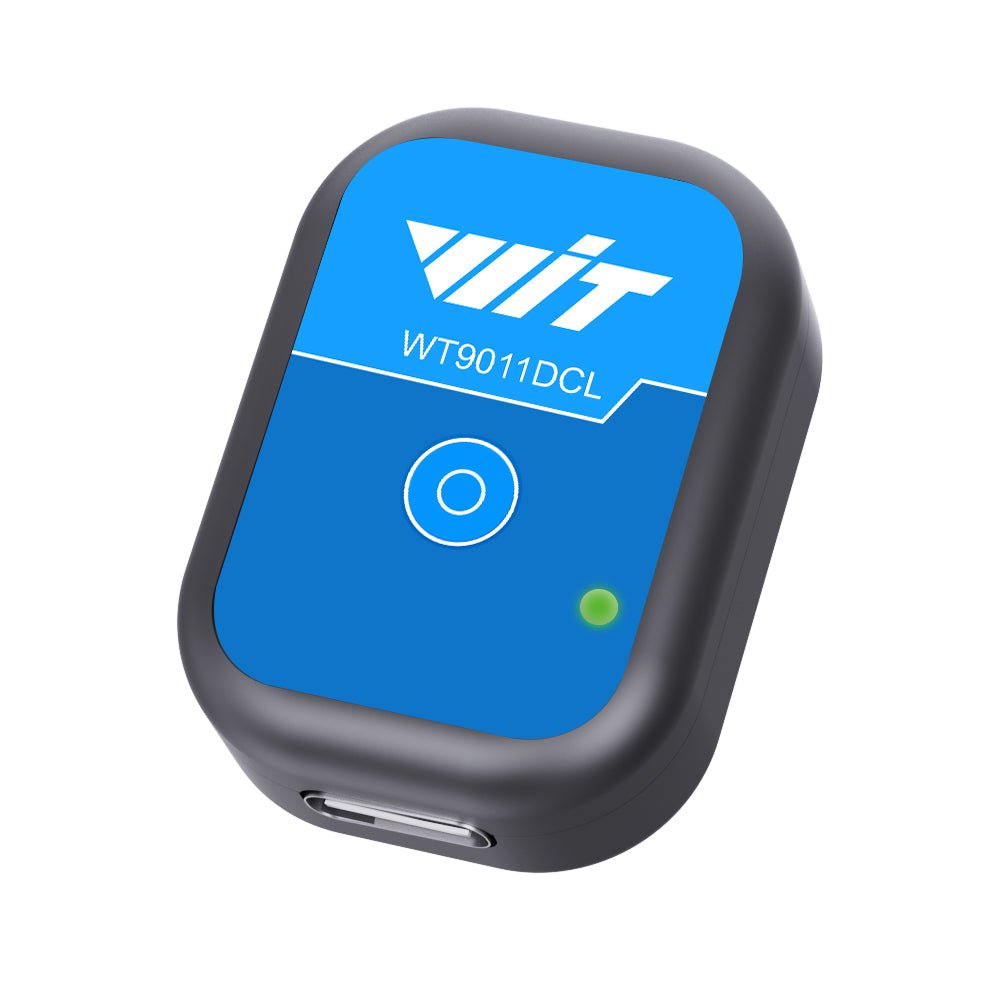

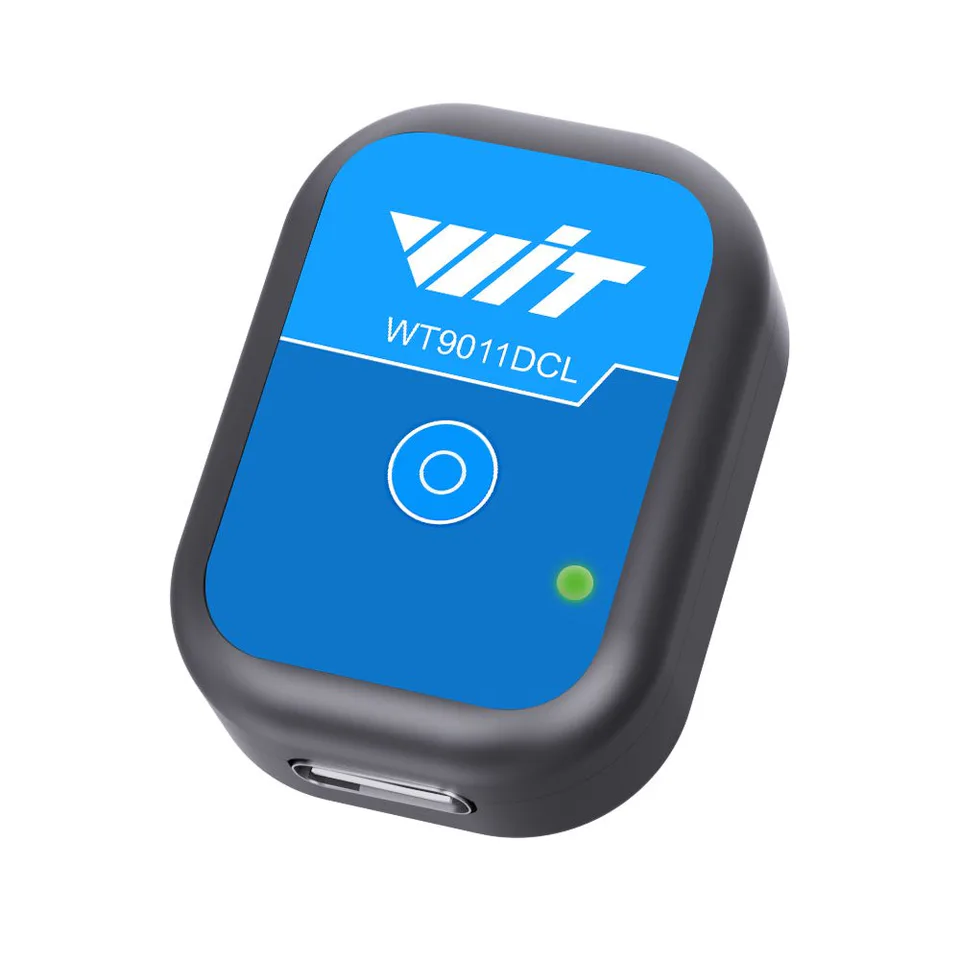

WitMotion WT9011DCL Sensor
WitMotion

WitMotion WT9011DCL Sensor

$25.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

The WitMotion WT9011DCL Sensor sensor from WitMotion targets developers building production or prototype robotic systems. WitMotion WT9011DCL Sensor specifications include Operating Temperature of -20°C ~ +60°C, Storage Temperature of -40°C ~ +85°C, and Shock Resistance of 20000g. Projects standardize on WitMotion WT9011DCL Sensor when sensor accuracy and supportability matter

Delivery / Pickup Options
Order summaryUSD
Merchandise$25.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$65.19
Estimated total before tax$90.19

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

5V
Charging Voltage
0.1 kg
Net weight
3.7V
Battery Voltage

All Specifications

BrandWitMotion
CategorySensor
AvailabilityBackorder
Net weight0.1 kg
Operating Temperature-20°C ~ +60°C
Storage Temperature-40°C ~ +85°C
Shock Resistance20000g
Weight8.46g
Operating DurationUp to 30 hours
Charging DurationUp to 2 hours
Output Content3‑axis Accel, 3‑axis Gyro, 3‑axis Magnetometer, 3‑axis Angle
Output Rate0.2Hz ~ 200Hz (default 10Hz)
Startup Time≤ 1000ms
Cascade Quantity (PC Bluetooth)4 units
Bluetooth Transmission Range (Open Area)50m ~ 90m
Range (Accelerometer)±16g
Sampling Rate (Accelerometer)1kHz
RMS Noise (Accelerometer, BW=100Hz)0.75 ~ 1 mg‑rms
Static Zero Drift (Accelerometer, Horizontal)±20 ~ 40mg
Temp. Drift (Accelerometer)±0.15 mg/°C
Range (Gyroscope)±2000°/s
Sampling Rate (Gyroscope)1kHz
RMS Noise (Gyroscope, BW=100Hz)0.028 ~ 0.07 (°/s)‑rms
Static Zero Drift (Gyroscope, Horizontal)±0.5 ~ 1°/s
Temp. Drift (Gyroscope)±0.005 ~ 0.015 (°/s)/°C
Range (Magnetometer)±2 Gauss
Range (Pitch/Roll)X: ±180°, Y: ±90°
Temp. Drift (Inclination)±1°
Range (Yaw)Z: ±180°
Resolution (Accelerometer)0.0005 (g/LSB)
Bandwidth (Accelerometer)5 ~ 256Hz
Resolution (Gyroscope)0.061 (°/s)/LSB
Bandwidth (Gyroscope)5 ~ 256Hz
Resolution (Magnetometer)0.0667 mGauss/LSB
Inclination Accuracy0.2°
Resolution (Horizontal)0.0055°
Heading Accuracy (9‑Axis, Magnetometer Calibrated, Dynamic/Static)1° (in magnetically clean environment)
Heading Accuracy (6‑Axis, Static)0.5° (dynamic integration error possible)
Resolution (Yaw, Horizontal)0.0055°
