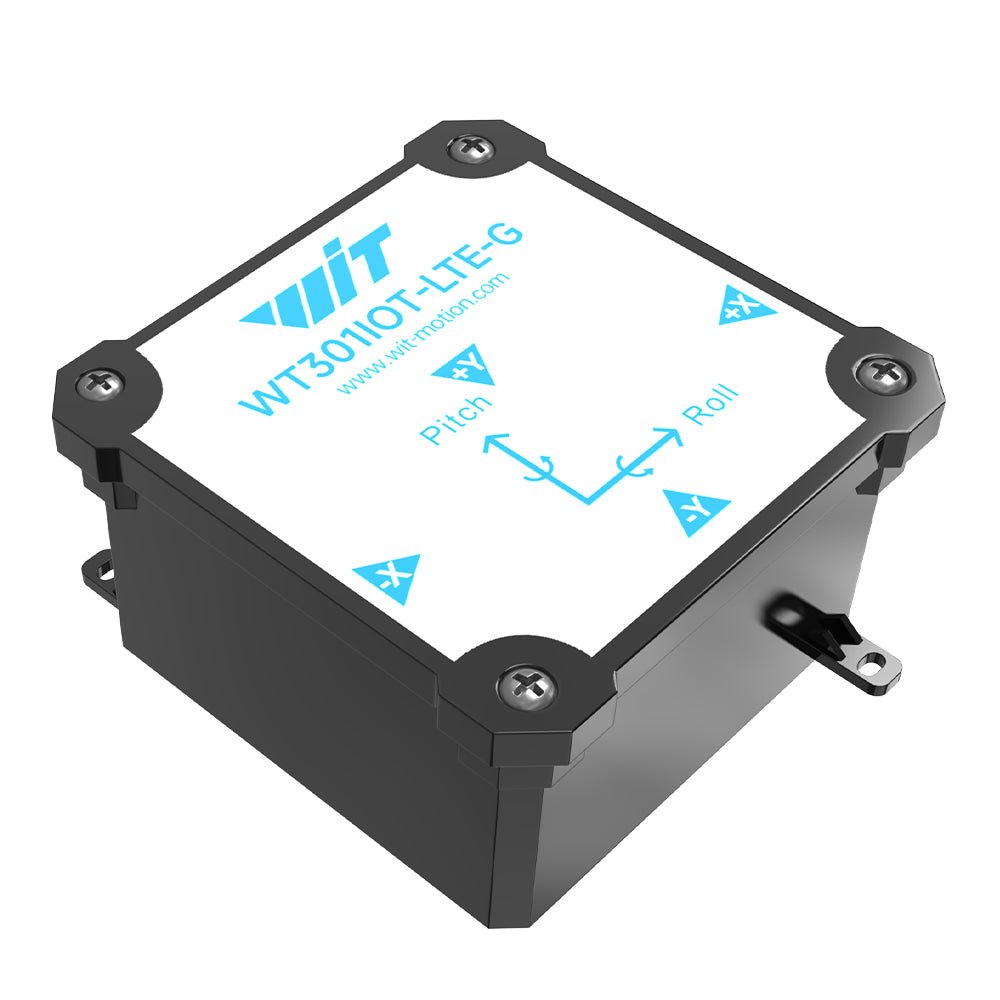

WitMotion WT301IOT Sensor
WitMotion

WitMotion WT301IOT Sensor

$75.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

WitMotion WT301IOT Sensor is a sensor built by WitMotion for integration into automated systems and research platforms. WitMotion WT301IOT Sensor specifications include Operating Temperature of -40°C ~ +85°C, Storage Temperature of -40°C ~ +85°C, and Supply Voltage of 3.6V. WitMotion WT301IOT Sensor helps robotics teams reduce integration risk with documented sensor parameters

Delivery / Pickup Options
Order summaryUSD
Merchandise$75.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$65.56
Estimated total before tax$140.56

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

3.6V
Supply Voltage
0.1 kg
Net weight

All Specifications

BrandWitMotion
CategorySensor
AvailabilityBackorder
Net weight0.1 kg
Operating Temperature-40°C ~ +85°C
Storage Temperature-40°C ~ +85°C
Output Content3‑axis Accel, 3‑axis Angle, Battery voltage, XY alarm signal, upload interval, on‑chip time
Network Upload Interval30 ~ 1440 minutes
Range (Accelerometer)±2g
RMS Noise (Accelerometer, BW=100Hz)0.75 ~ 1 mg‑rms
Static Zero Drift (Accelerometer, Horizontal)±80mg
Temp. Drift (Accelerometer)±0.15 mg/°C
Range (Tilt)X: ±90°, Y: ±90°, Z: 0~180°
Temp. Drift (Tilt)±0.5 ~ 1°
Resolution (Accelerometer)0.0005 (g/LSB)
Bandwidth (Accelerometer)5 ~ 256Hz
Inclination Accuracy0.2°
Resolution (Tilt, Horizontal)0.0055°
