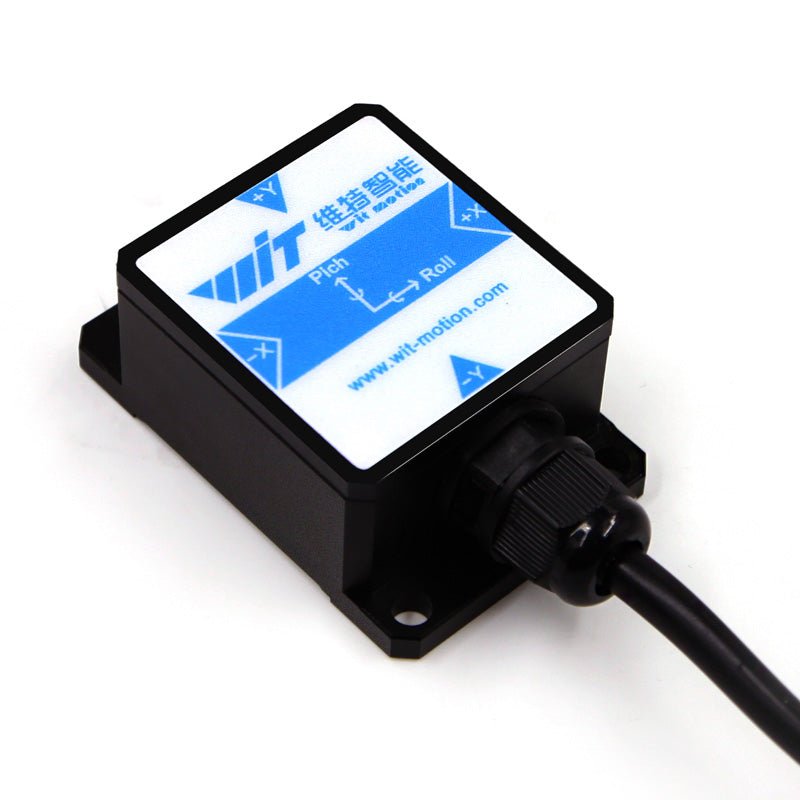

WitMotion SINVT Sensor
WitMotion

WitMotion SINVT Sensor

$40.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

WitMotion SINVT Sensor is a sensor built by WitMotion for integration into automated systems and research platforms. WitMotion SINVT Sensor specifications include Operating Temperature of -40°C ~ +85°C, Storage Temperature of -40°C ~ +85°C, and Shock Resistance of 20000g. WitMotion SINVT Sensor helps robotics teams reduce integration risk with documented sensor parameters

Delivery / Pickup Options
Order summaryUSD
Merchandise$40.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$65.30
Estimated total before tax$105.30

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

12V ~ 36V (default 12V)
Supply Voltage
0.1 kg
Net weight
475.2mW
Power Consumption (TTL)

All Specifications

BrandWitMotion
CategorySensor
AvailabilityBackorder
Net weight0.1 kg
Operating Temperature-40°C ~ +85°C
Storage Temperature-40°C ~ +85°C
Shock Resistance20000g
Protection ClassIP67
Output ContentOn‑chip time, 3‑axis Accel, 3‑axis Gyro, 3‑axis Angle
Output Rate0.2Hz ~ 200Hz (default 10Hz)
Range (Accelerometer)±16g
Sampling Rate (Accelerometer)2kHz
RMS Noise (Accelerometer, BW=100Hz)0.75 ~ 1 mg‑rms
Static Zero Drift (Accelerometer, Horizontal)±20 ~ 40mg
Temp. Drift (Accelerometer)±0.15 mg/°C
Range (Gyroscope)±2000°/s
Sampling Rate (Gyroscope)2kHz
RMS Noise (Gyroscope, BW=100Hz)0.028 ~ 0.07 (°/s)‑rms
Static Zero Drift (Gyroscope, Horizontal)±0.5 ~ 1°/s
Temp. Drift (Gyroscope)±0.005 ~ 0.015 (°/s)/°C
Range (Pitch/Roll)X/Y: ±90°
Temp. Drift (Inclination)±0.1°
Range (Yaw)Z: ±180°
Resolution (Accelerometer)0.0005 (g/LSB)
Bandwidth (Accelerometer)5 ~ 256Hz
Resolution (Gyroscope)0.061 (°/s)/LSB
Bandwidth (Gyroscope)5 ~ 256Hz
Inclination Accuracy0.2°
Resolution (Horizontal)0.0055°
Heading Accuracy (6‑Axis, Static)0.5° (dynamic integration error possible)
Resolution (Yaw, Horizontal)0.0055°
