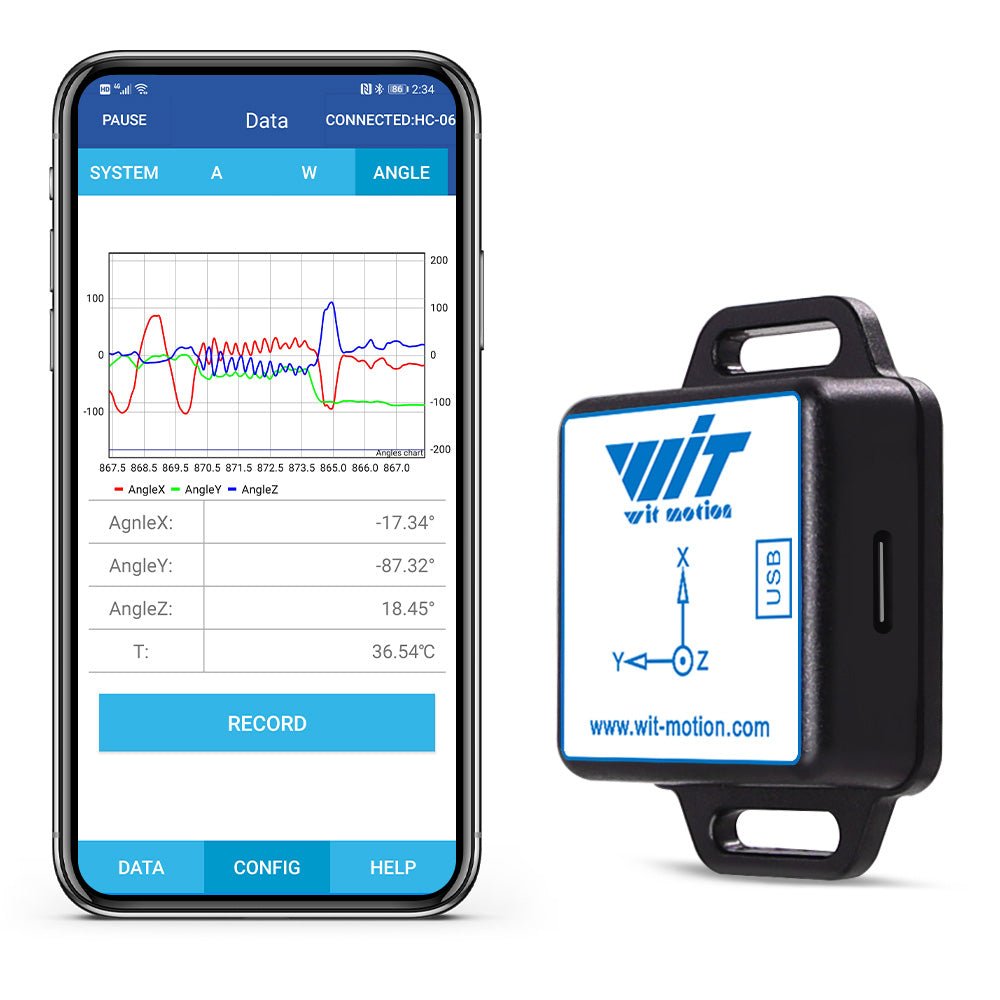

WitMotion BWT901CL Sensor
WitMotion

WitMotion BWT901CL Sensor

$50.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

WitMotion BWT901CL Sensor is a sensor built by WitMotion for integration into automated systems and research platforms. WitMotion BWT901CL Sensor specifications include Operating Temperature of -20°C ~ +60°C, Storage Temperature of -40°C ~ +85°C, and Shock Resistance of 20000g. WitMotion BWT901CL Sensor helps robotics teams reduce integration risk with documented sensor parameters

Delivery / Pickup Options
Order summaryUSD
Merchandise$50.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$65.38
Estimated total before tax$115.38

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

5V
Charging Voltage
0.1 kg
Net weight
3.7V
Battery Voltage

All Specifications

BrandWitMotion
CategorySensor
AvailabilityBackorder
Net weight0.1 kg
Operating Temperature-20°C ~ +60°C
Storage Temperature-40°C ~ +85°C
Shock Resistance20000g
Weight19.23g
Operating Duration4 ~ 6 hours
Charging Duration2 ~ 3 hours
Output ContentOn-chip time, 3-axis Accel, 3-axis Gyro, 3-axis Magnetometer, 3-axis Angle, Quaternion
Output Rate0.2Hz ~ 200Hz (default 10Hz)
Startup Time1000ms
Range (Accelerometer)±16g
Sampling Rate (Accelerometer)1kHz
RMS Noise (Accelerometer)0.75 ~ 1 mg-rms
Static Zero Drift (Accelerometer)±20 ~ 40mg
Temp. Drift (Accelerometer)±0.15 mg/°C
Bias Stability (Accelerometer, 10s Smoothing)XY:15ug; Z:35ug
Bias Instability (Accelerometer, Allan)XY:10ug; Z:30ug
Range (Gyroscope)±2000°/s
Sampling Rate (Gyroscope)1kHz
RMS Noise (Gyroscope)0.028 ~ 0.07 (°/s)-rms
Static Zero Drift (Gyroscope)±0.5 ~ 1°/s
Temp. Drift (Gyroscope)±0.005 ~ 0.015 (°/s)/°C
Bias Stability (Gyroscope, 10s Smoothing)8°/h
Bias Instability (Gyroscope, Allan)5°/h
Range (Magnetometer)±2 Gauss
Range (Pitch/Roll)X: ±180°, Y: ±90°
Temp. Drift (Inclination)±1°
Range (Yaw)Z: ±180°
Resolution (Accelerometer)0.0005 (g/LSB)
Bandwidth (Accelerometer)5 ~ 256Hz
Resolution (Gyroscope)0.061 (°/s)/LSB
Bandwidth (Gyroscope)5 ~ 256Hz
Resolution (Magnetometer)6.67 nT/LSB
Inclination Accuracy0.2°
Resolution (Angle)0.0055°
Heading Accuracy (9 Axis, Magnetometer Calibrated, Dynamic/Static)1° (in magnetically clean environment)
Heading Accuracy (6 Axis, Static)0.5° (dynamic integration error possible)
Resolution (Yaw)0.0055°
