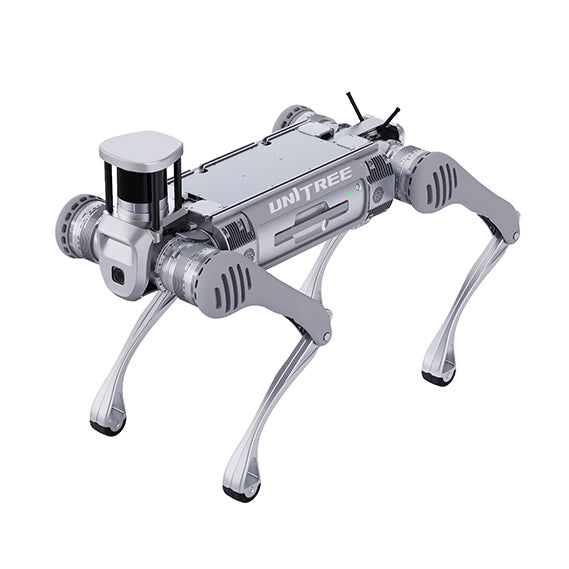

Unitree B2 Quadruped Robot
$85,900.00In stock
Key Specifications
> 6 m/s (speed-limited in normal use)
Max Speed
60 kg
Net weight
1098 × 450 × 645 mm
Dimensions
Approx. 360 N·m
Max Joint Torque
≥ 120 kg
Payload (Standing)
Approx. 60 kg
Weight (With Battery)
All Specifications
BrandUnitree
CategoryQuadruped Robot
AvailabilityIn stock
Net weight60 kg
Dimensions1098 × 450 × 645 mm
Dimensions (Standing)Approx. 1098 × 450 × 645 mm
Dimensions (Lying Prone)Approx. 880 × 460 × 330 mm
Stair Climbing20–25 cm continuous; 40 cm steps forward
Max Slope> 45°
Max Jump Distance> 1.6 m
IP RatingIP67
Operating Temperature-20 °C to +55 °C
RuntimeApprox. 4–6 h (> 5 h / > 20 km unloaded; > 4 h / > 15 km with 20 kg)
ComputeIntel Core i5 (platform) + Intel Core i7 (user development); optional Core i7 or Orin NX, up to 3 units
Sensors3D LiDAR ×1, depth camera ×2, optical camera ×2 (varies by configuration)
External InterfacesGigabit Ethernet ×4, USB 3.0 ×4, 12 V ×4, 24 V ×4, 5 V ×1, BAT ×1
Payload (Standing)≥ 120 kg
Payload (Walking)> 40 kg
Max Speed> 6 m/s (speed-limited in normal use)
Max Joint TorqueApprox. 360 N·m
Weight (With Battery)Approx. 60 kg
Battery45 Ah (2250 Wh), 58 V
Models and configurations
Unitree B2 prices by configuration
Store prices for the 2 Unitree B2 configurations we list. Open a configuration for its full specifications.
| Configuration | Price | Availability |
|---|---|---|
| Unitree B2 | $85,900.00 | In stock |
| Unitree B2-W | Request a Quote | In stock |
