BrandRizon
CategoryCompute Platform
AvailabilityBackorder

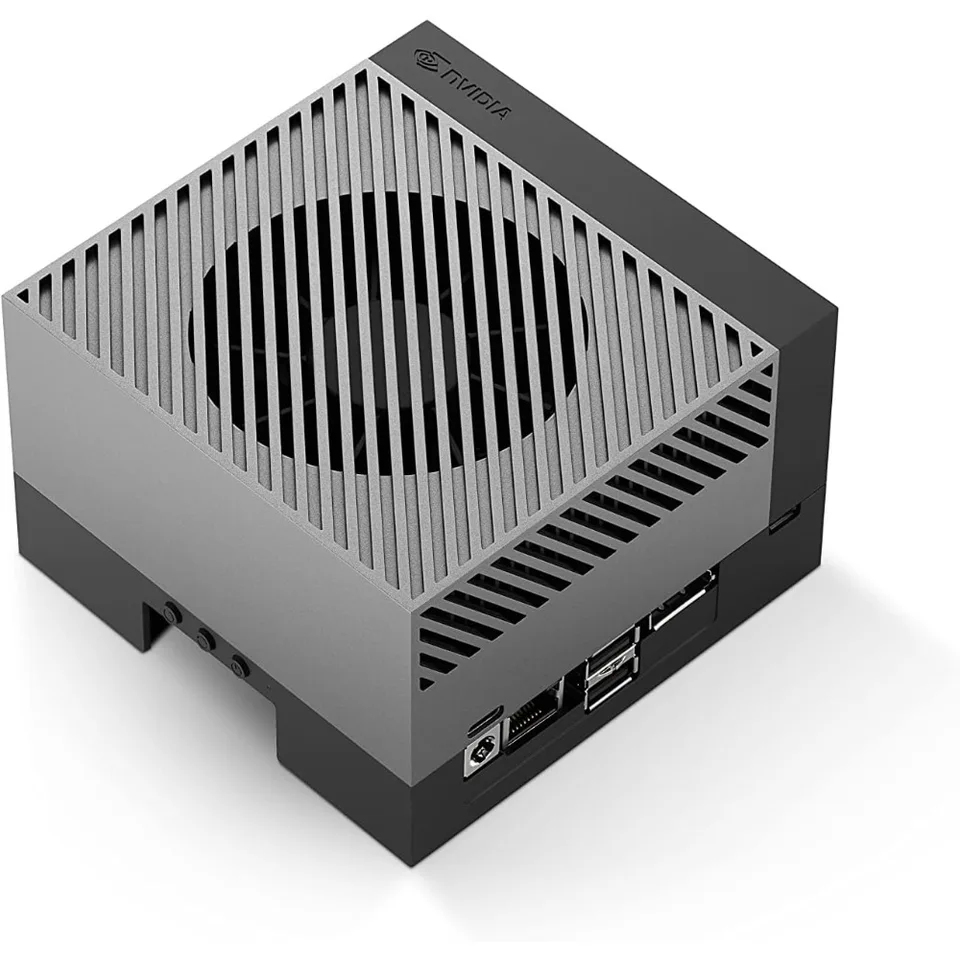

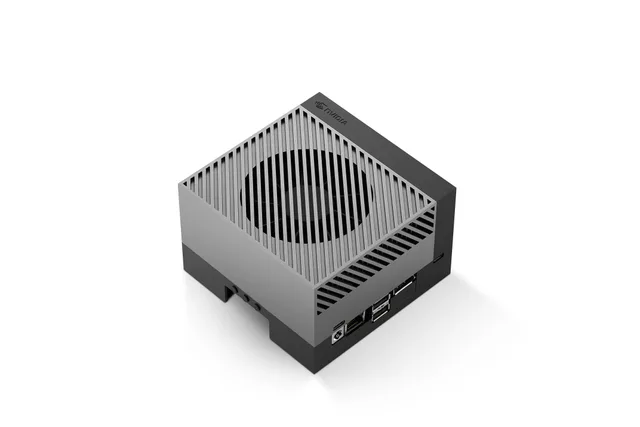

ProductNVIDIA Jetson AGX Orin Developer Kit (64GB)
AI Performance275 TOPS
GPU2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores, up to 1.3 GHz
CPU12-core Arm Cortex-A78AE v8.2 64-bit, 3MB L2 + 6MB L3, up to 2.2 GHz
Memory64GB 256-bit LPDDR5, 204.8 GB/s
Storage64GB eMMC 5.1; M.2 M-Key slot for NVMe; microSD slot
NetworkingRJ45, up to 10 GbE
Display1x DisplayPort (up to 8K30 or 4K120, MST)
USB2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 2x USB-C (USB 3.2 Gen 2), micro-B debug
ExpansionPCIe x16 slot (PCIe 4.0 x8), M.2 E-Key, 40-pin header, camera connector
Dimensions110 x 110 x 71.65 mm (incl. feet, carrier board, module and thermal solution)
