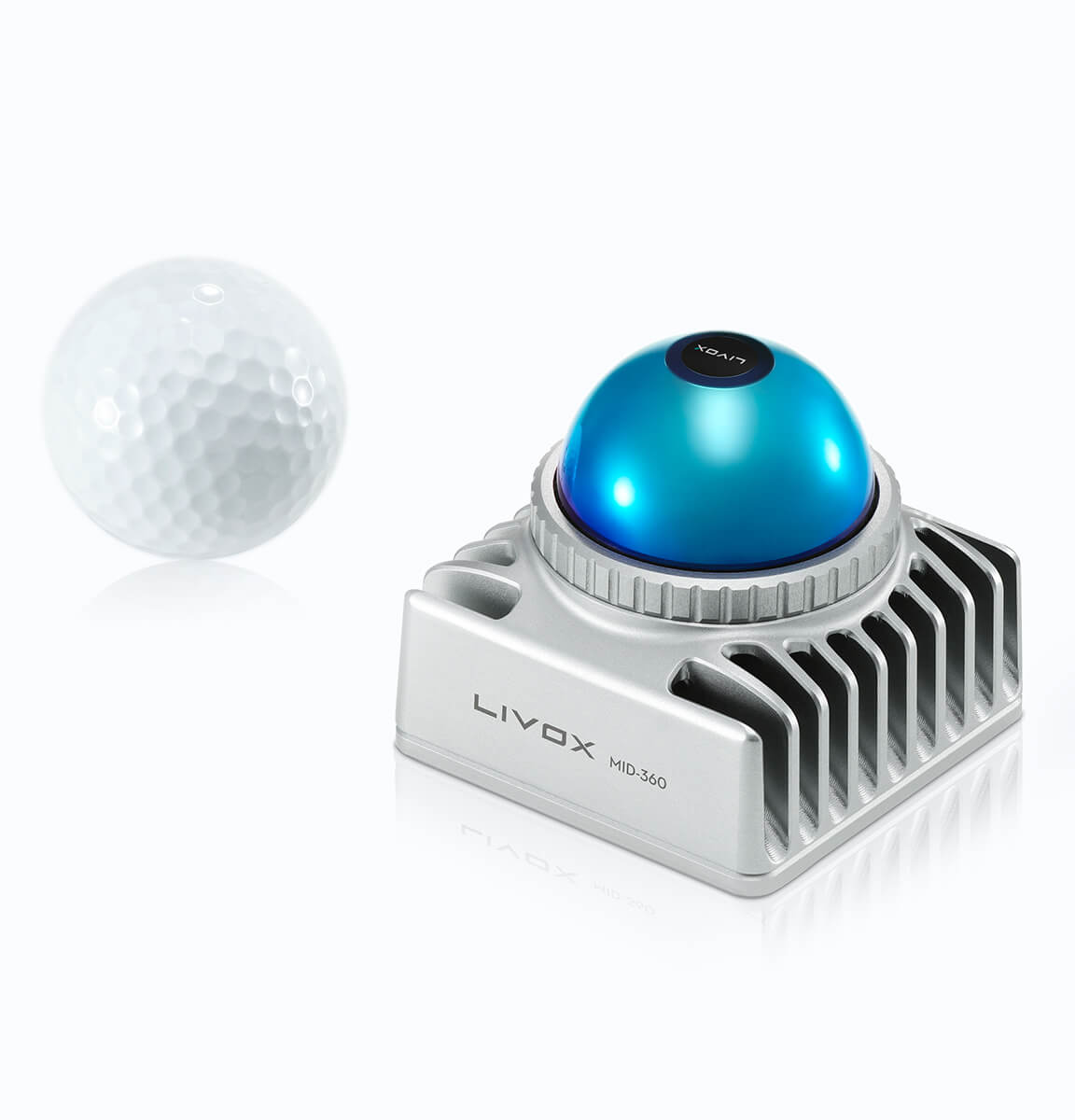

Livox Mid-360
Contact for pricingBackorder
- Shipping calculated at checkout
- In-house support
Key Specifications
9-27 V DC
Power Supply Voltage Range
1 kg
Net weight
65 (width) x 65 (depth)x 60 (height) mm
Dimensions
6.5 W (environment temperature 25°C(77°F))
Power
All Specifications
BrandLivox (DJI)
CategoryLiDAR
AvailabilityBackorder
Net weight1 kg
ModelMID-360
Laser Wavelength905 nm
Laser SafetyClass 1(IEC 60825-1:2014)(safe for eyes)
Detection Range (@ 100 Klx)40 m @ 10% reflectivity 70 m @ 80% reflectivity
Close Proximity Blind Zone0.1 m
FOVHorizontak 360°, Vertical: -7°~ 52°
Distance Random Error (1σ)≤2 cm (@10 m) ≤3 cm (@ 0.2 m)
Angular Random Error (1σ)≤0.15°
Point Rate200,000 points/s
Frame Rate10 Hz (typical value)
Data Port100 BASE-TX Ethemet
Data SynchronizationIEEE 1588-2008(PTP v2),GPS
Anti Lnterference FunctionAvailable
False Alarm Ratio (@100 Klx)<0.01%
IMUBuilt-in lMU Model: ICM40609
Operating Temperature-20° to 55° C (-4° to 131°F)
Storage Temperature-40° to 70° C(-40° to 158°F)
IP RatingIP67
Dimensions65 (width) x 65 (depth)x 60 (height) mm
WeightApprox. 265 g
Power6.5 W (environment temperature 25°C(77°F))
Power Supply Voltage Range9-27 V DC
