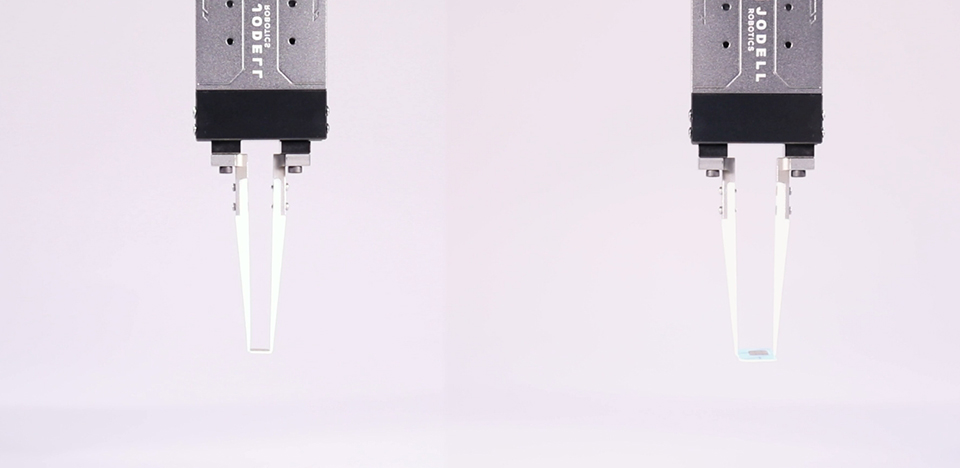

High-precision electric parallel gripper with precise positioning, multi-face mounting, and power-off self-lock. 0–60mm stroke, 5–50N gripping force. Ideal for alignment, inspection, and precision assembly.

Model / Configuration

Delivery Timeline

Request a Quote

JODELL distributor for North America · Questions? contact@roboticscenter.ai

Technical Specifications

JODELL EPG-HP High Precision Parallel Gripper Specs

Series	EPG-HP (High Precision Electric Parallel Gripper)
Stroke Range	0–26mm (HP26) / 0–50mm (HP50) / 0–60mm (HP60)
Gripping Force	5–50N (single finger, at full speed)
Open/Close Time	0.65s (HP26) / 0.70s (HP50) / 0.85s (HP60)
Weight	0.45kg (HP26, HP50) / 0.56kg (HP60)
Rated Voltage	DC 24V ±10%
Key Feature	Precise positioning — “HP” models recommended for alignment and measurement
Power-Off Self-Lock	Yes
Communication	RS 485+I/O
IP Rating	IP40
Standards	CE, RoHS

About JODELL

Industry-Leading End Effector Technology

Integrated Drive & Control

JODELL products use a controller-integrated design philosophy that minimizes communication latency and simplifies wiring for rapid deployment.

High-Precision Design

Proprietary low-latency position sensors and FOC vector algorithms achieve μm-level position accuracy and 0.1N-level force control.

Application Areas

Designed for precision alignment, optical inspection, semiconductor handling, precision assembly, measurement. CE and RoHS certified for global deployment.
