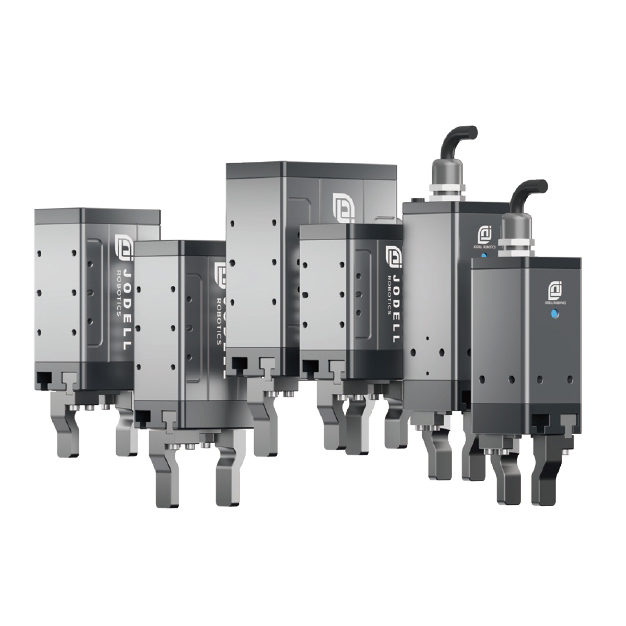

JODELL EPG Electric Parallel Gripper

Compact intelligent electric parallel gripper series with 0–50mm stroke, 2–100N gripping force, power-off self-lock, and RS-485/Modbus communication. 6 models from EPG26 to EPG50.

JODELL EPG Electric Parallel Gripper

Contact us for pricing and availability.

Request a Quote

JODELL distributor for North America · Questions? contact@roboticscenter.ai

Technical Specifications

JODELL EPG Electric Parallel Gripper Specs

SeriesEPG (Electric Parallel Gripper)
Stroke Range0–26mm (EPG26) / 0–40mm (EPG40) / 0–50mm (EPG50)
Gripping Force2–6N up to 40–100N (single finger, at full speed)
Position Repeatability±0.02 mm
Rated VoltageDC 24V ±10%
Max Current0.85 A
CommunicationModbus RTU (RS 485) / RS 485+I/O
Open/Close Time0.25s (EPG26-006) up to 1.10s (EPG50-100)
Drop DetectionSupported on all models
IP RatingIP40
Operating Temperature0–40°C, 85% RH or below
Noise Level<40 dB
Weight0.20kg (EPG26-006) to 0.57kg (EPG50-060)
StandardsCE, RoHS
Power-Off Self-LockYes — mechanical lock maintains grip without power
About JODELL

Industry-Leading End Effector Technology

Integrated Drive & Control

JODELL products use a controller-integrated design philosophy that minimizes communication latency and simplifies wiring for rapid deployment.

High-Precision Design

Proprietary low-latency position sensors and FOC vector algorithms achieve μm-level position accuracy and 0.1N-level force control.

Application Areas

Designed for 3C electronics, medical devices, precision manufacturing, education displays, automotive. CE and RoHS certified for global deployment.
