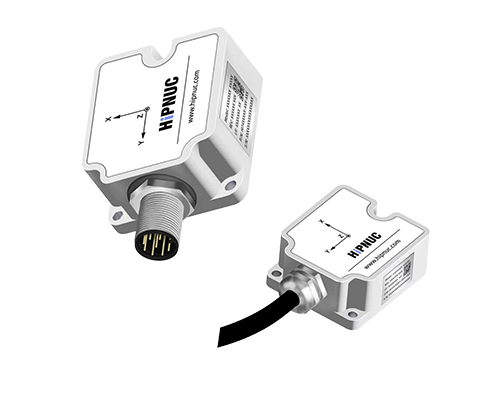

HiPNUC HI14M Sensor
$165.00Backorder
Key Specifications
0.1 kg
Net weight
All Specifications
BrandHiPNUC
CategorySensor
AvailabilityBackorder
Net weight0.1 kg
Full Scale Range±2000 μT
Scale Factor Error<600 ppm / 850 ppm
Nonlinearity±10 μT / ±20 μT
Noise Density0.16 mg/√Hz (Typ) / 0.2 mg/√Hz (Max)
Zero Rate Output±0.1 °/s / ±0.2 °/s
Sampling Rate1000 Hz
Bias InstabilityX: 0.021 mg / 0.035 mg; Y: 0.032 mg / 0.065 mg; Z: 0.023 mg / 0.03 mg
Bias StabilityX: 0.068 mg / 0.1 mg; Y: 0.09 mg / 0.19 mg; Z: 0.07 mg / 0.1 mg
Angle Random WalkX: 0.55°/√h / 1.1°/√h; Y: 0.82°/√h / 1.2°/√h; Z: 0.47°/√h / 0.7°/√h
Bias Variation Over Full Temperature Range2 mg / 5 mg
Acceleration Sensitivity0.05 °/s/g
Initial Zero Bias1 mg / 2 mg
Velocity Random Walk0.09 m/s/√h / 0.11 m/s/√h
Noise0.19 μT / 0.45 μT
Measurement Range-40℃ ~ 85℃
Bias Error±5℃
Pitch/Roll0.2° / 0.3°
Heading Angle2° / 3°
Heading Static Drift0.15° / 0.2°
Heading Dynamic Drift±10° / ±10°
Heading Rotation Error0.2° / 0.3°
Resolution16 bit
3d B Bandwidth90 Hz (Min) ~ 200 Hz (Max)
Bias RepeatabilityX: 0.22 mg / 0.4 mg; Y: 0.15 mg / 0.21 mg; Z: 0.12 mg / 0.2 mg
