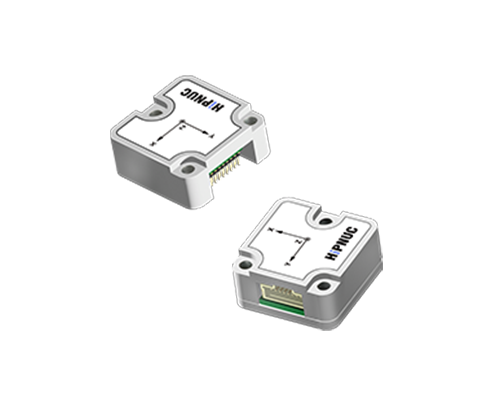

HiPNUC HI12S Sensor
$215.00Backorder
Key Specifications
0.1 kg
Net weight
All Specifications
BrandHiPNUC
CategorySensor
AvailabilityBackorder
Net weight0.1 kg
Measurement Range-40 ~ 85 °C
Non Linearity±10–±20 μT
Noise Density0.05–0.07 mg/√Hz (Bandwidth: 10 Hz)
Zero Rate Output≤±0.1 °/s (Typical: ±0.2 °/s, RMS)
Sampling Rate1000 Hz
Bias Instability (Allen Variance, 1σ)X: 0.012–0.02 mg; Y: 0.009–0.015 mg; Z: 0.016–0.022 mg
Bias Stability (10s Smoothing, 3σ)X: 0.032–0.055 mg; Y: 0.022–0.032 mg; Z: 0.048–0.082 mg
Angular Random Walk (Allen Variance, 1σ)X: 0.12–0.16 °/√h; Y: 0.1–0.12 °/√h; Z: 0.1–0.14 °/√h
Full Temperature Bias Variation ( 40 ~ 85 °C)XY: 2–5 mg; Z: 6–15 mg
Scale Factor Sensitivity0.05 °/s/g (XYZ axes)
Initial Zero Bias1–2 mg (RMS)
Velocity Random Walk (Allen Variance, 1σ)0.019–0.03 m/s/√h (XYZ axes)
Noise0.19–0.45 μT
Bias Error±5 °C
6 Do F Yaw Static Drift (2h)0.15–0.2 °
6 Do F Yaw Dynamic Drift±5–±10 °
6 Do F Yaw Rotation Error (@ 100 °/S)0.3–0.4 °
Resolution16 bit (Typical: 20 bit)
Angular Resolution (RMS @ 100 °/S Rotation)<600 ppm (Typical: 1200 ppm)
3d B Bandwidth90 Hz (Max: 400 Hz)
Bias Repeatability (3σ)X: 0.1–0.3 mg; Y: 0.06–0.2 mg; Z: 0.1–0.2 mg
Static Pitch/Roll Accuracy0.15–0.2 °
Dynamic Pitch/Roll Accuracy0.2–0.3 °
AHRS Yaw Accuracy2–3 °
