Daimon DM-Tac X
DM Robot

Daimon DM-Tac X

$200.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

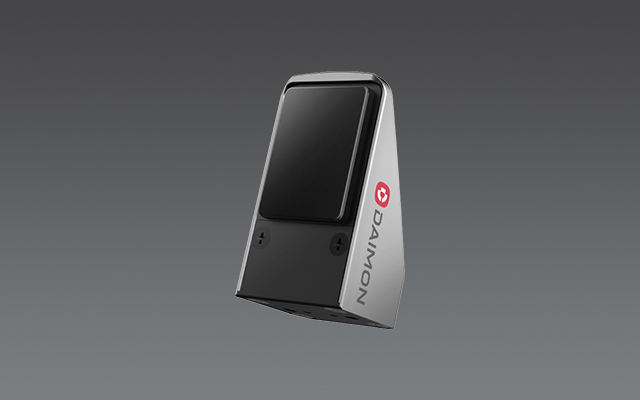

Daimon (Shenzhen) Robotics Technology Co., Ltd. has developed the Blade vision-tactile sensor, which is thin and lightweight with high detection accuracy. It is suited for tight-space operation scenarios and can precisely capture multi-dimensional force and tactile data with fast response speed and strong stability. It supports custom development to meet diverse application requirements.

Delivery / Pickup Options
Order summaryUSD
Merchandise$200.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$66.50
Estimated total before tax$266.50

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

0.3 kg
Net weight
76.5(H) x 46(W) x 31(D)
Dimensions (Mm)
0.5W
Operating Power Consumption

All Specifications

BrandDM Robot
CategorySensor
AvailabilityBackorder
Net weight0.3 kg
Dimensions (Mm)76.5(H) x 46(W) x 31(D)
Effective Sensing Points110592
Weight131g
Sensing Area (Mm²)20 × 15
IP RatingIP67
Sampling Rate120Hz
Sensitivity< 1%FS
Zero Drift< 1%FS
Output Hysteresis< 2%FS
Nonlinearity< 3%FS
Camera Resolution640 × 480
Sensing Resolution384 x 288
