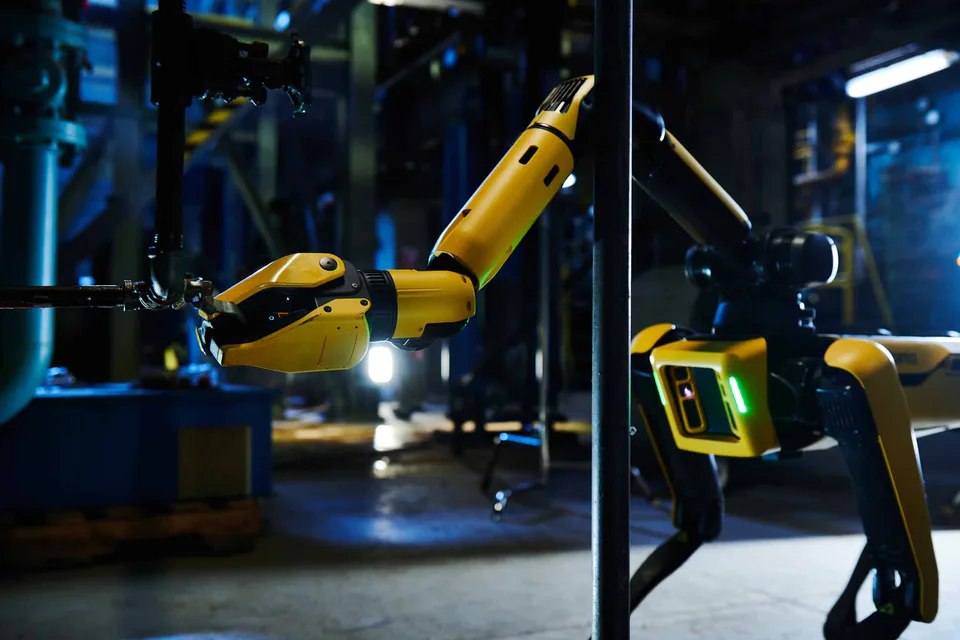

Boston Dynamics Spot + Arm

Boston Dynamics Spot quadruped with integrated 6-DOF arm and gripper. Arm weighs 8 kg, 984 mm reach, 11 kg max lift, 5 kg continuous lift at 0.5 m extension. Gripper with 175 mm aperture and 130 N clamp force. 1800 mm max reach height. Manual, semi-automated, and fully automated control via tablet and API.

Boston Dynamics Spot + Arm

From $100,000

Contact us for final pricing and configuration options.

Request a Quote

Boston Dynamics authorized partner · contact@roboticscenter.ai

View on manufacturer site →

Technical Specifications

Boston Dynamics Spot + Arm Specs

Robot Weight32.7 kg (Spot) + 8 kg (Arm)
Arm DOF6 + gripper
Arm Reach984 mm
Max Reach Height1800 mm
Max Lift11 kg
Continuous Lift5 kg @ 0.5 m
Gripper Aperture175 mm
Gripper Force130 N peak
Max Endpoint Speed10 m/s
Max Drag (carpet)25 kg
ControlTablet, API, autonomous
