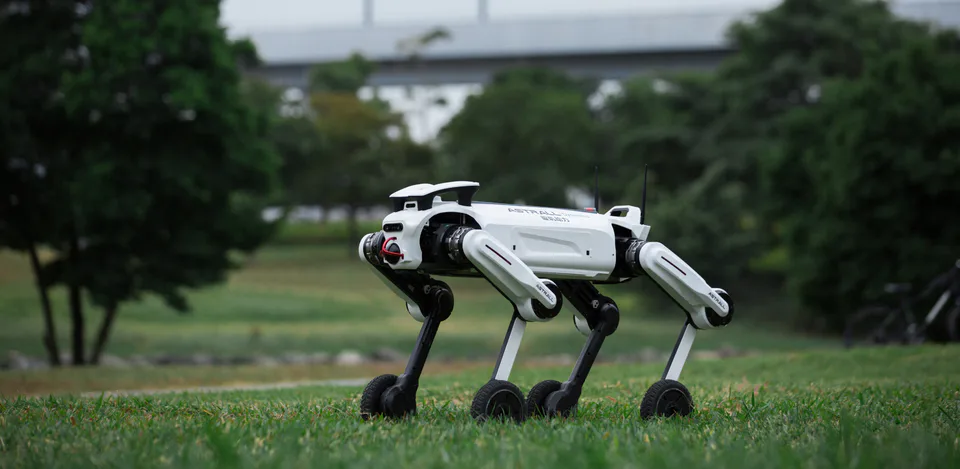

ASTRALL A01 Robot
Contact for pricingBackorder
- Shipping calculated at checkout
- In-house support
Key Specifications
7 m/s
Max Speed
25 kg
Net weight
90 × 25 × 25 mm
Dimensions
50 N·m / 300 N·m
Rated/Max Torque
≤80kg
Working Payload
Ternary Lithium, 10.2kg, 66.6V, 30Ah
Battery System
All Specifications
BrandASTRALL
CategoryQuadruped Robot
AvailabilityBackorder
Net weight25 kg
Dimensions90 × 25 × 25 mm
Standing Dimensions1110mm × 610mm × 745mm
Crouching Dimensions1130mm × 755mm × 320mm
Weight82kg (including battery)
Shell MaterialEngineering Plastic
Leg Structure MaterialAerospace-Grade Metal
ChargerInput: 220V AC, 50Hz; Output: 75.6V, 15A
EncoderDual Encoder
Max Standing Load200kg
Max Obstacle Crossing Angle45°
Continuous Stair Climbing Height20~25 cm
Max Obstacle Climbing Height90cm
Protection RatingIP66
Operating Temperature-20℃ ~ 55℃
Storage Temperature-20℃ ~ 60℃
Quantity / Detection Range2 units / 30m ± 10%
Scanning Lines / Point Cloud Density192 lines / 1,720,000 pts/s (dual-echo mode), 860,000 pts/s (single-echo mode)
FOV / Frame Rate360°×90° / 10 Hz
Quantity / Size1 unit / 90×25×25 mm
Operating Range0.01-20m
RTK / GPS / 4GOptional
WIFI / Bluetooth / IMU Attitude SensorStandard
Microphone & SpeakerOptional
Work LightStandard
Software SDK For Secondary DevelopmentSupported
Rated/Max Torque50 N·m / 300 N·m
Working Payload≤80kg
Max Speed7 m/s
Resolution / Frame Rate1280×800 / 30 fps
Battery SystemTernary Lithium, 10.2kg, 66.6V, 30Ah
Battery Life4~8 hours (loaded/unloaded)
External CommunicationRS485×2, CAN×2, Ethernet Port×2
Power Interface 112V, ≤20A, ≤240W
Power Interface 220V-48V, ≤10A, ≤480W
