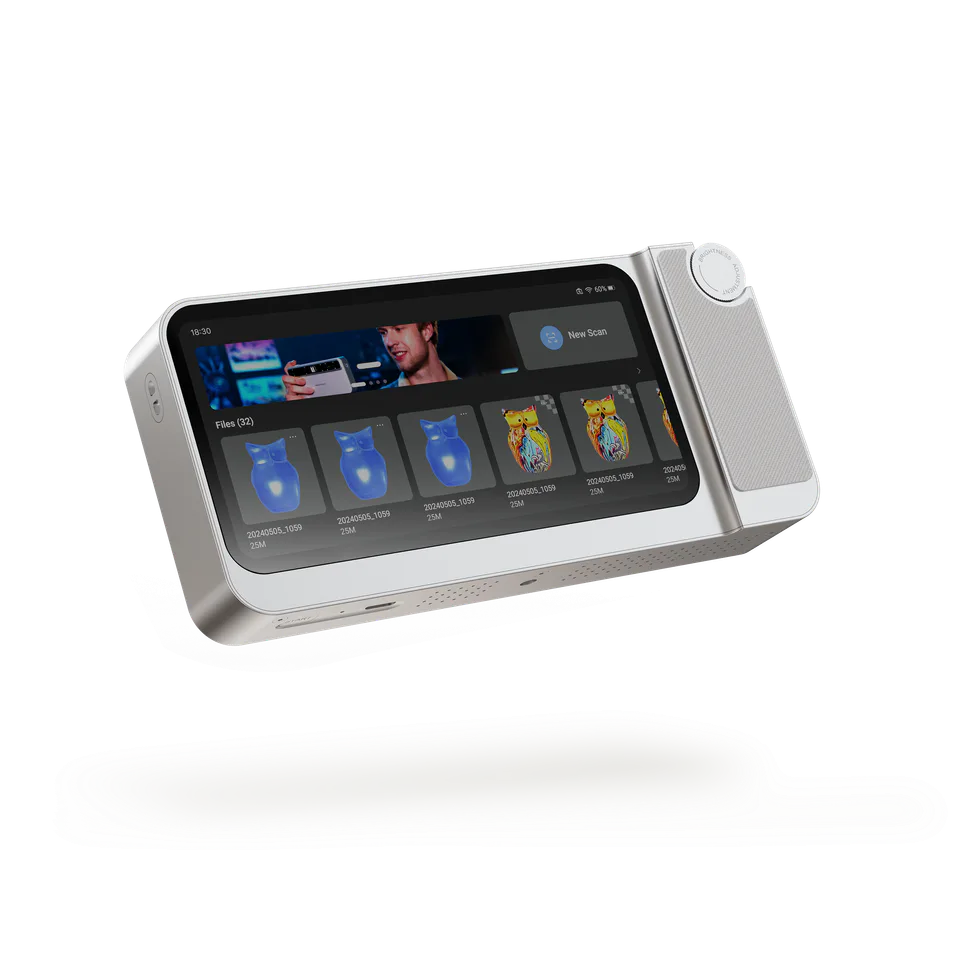

3DMakerpro Toucan 3D Scanner
3DMAKERPRO

3DMakerpro Toucan 3D Scanner

$1,999.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

The 3DMakerpro Toucan 3D Scanner camera from 3DMAKERPRO targets developers building production or prototype robotic systems. 3DMakerpro Toucan 3D Scanner specifications include Scan Type of Continuous Handheld Scan/ Photo Scan / Table Scan, Camera of 3D Cameras *4 48 MP RGB Camera *1, and Light Soure of Blue Laser Structured Light(Class1/Class3R). Projects standardize on 3DMakerpro Toucan 3D Scanner when camera accuracy and supportability matter

Delivery / Pickup Options
Order summaryUSD
Merchandise$1,999.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$154.99
Estimated total before tax$2,153.99

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

0.5 kg
Net weight
200 × 93 × 37.5 mm
Dimensions
6600 mAh
Battery

All Specifications

Brand3DMAKERPRO
CategoryCamera
AvailabilityBackorder
Net weight0.5 kg
Dimensions200 × 93 × 37.5 mm
Scan TypeContinuous Handheld Scan/ Photo Scan / Table Scan
Camera3D Cameras *4 48 MP RGB Camera *1
Light SoureBlue Laser Structured Light(Class1/Class3R)
Scanning Range (FOV)135×185 mm (Small) / 1000×750 mm (Large)
Working Distance200–1000 mm
Processor8-core 2.4 GHz CPU + Mali-G52 GPU
Memory/ Built In Storage32 GB DDR4 / 256 GB eMMC
ConnectivityWi-Fi 6, Bluetooth4.1, Interface: USB-C
Sensors & InteractionPosition Sensor: 9-axis IMU Tracking Method: Features/ Markers/ Global Markers Button: 2 Scroll Wheel : 1
Volume<200×93×37.5mm
Weight735g
Single Frame Accuracy≤ 0.03mm (Small)/ ≤ 0.10mm (Large)
Resolution≤ 0.03mm (Fixed Shot)/ ≤ 0.05mm (Small)/ ≤ 0.10mm (Large)
Scan SpeedUp to 15 fps
