Boston Dynamics
Boston Dynamics Spot + Arm

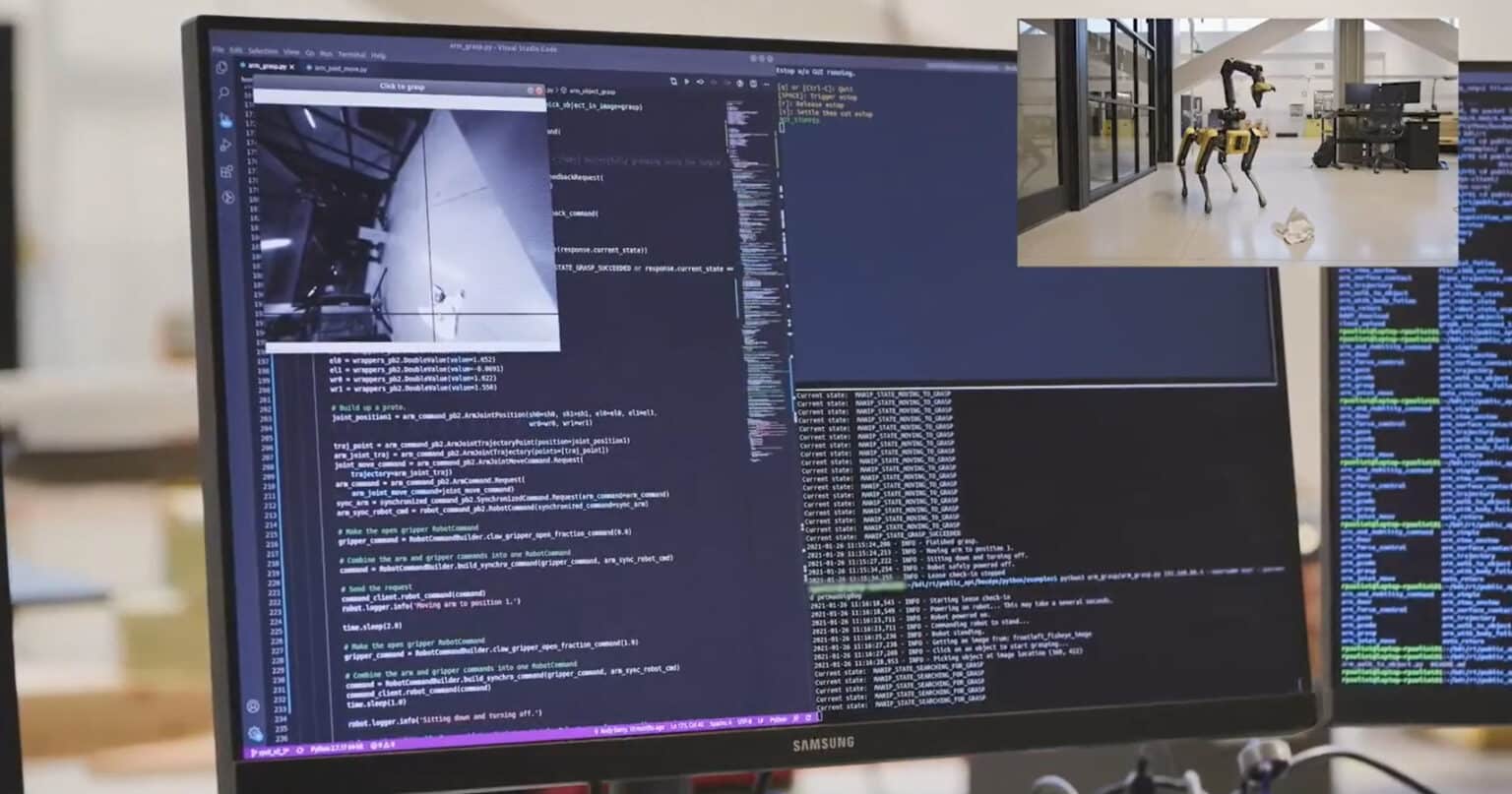

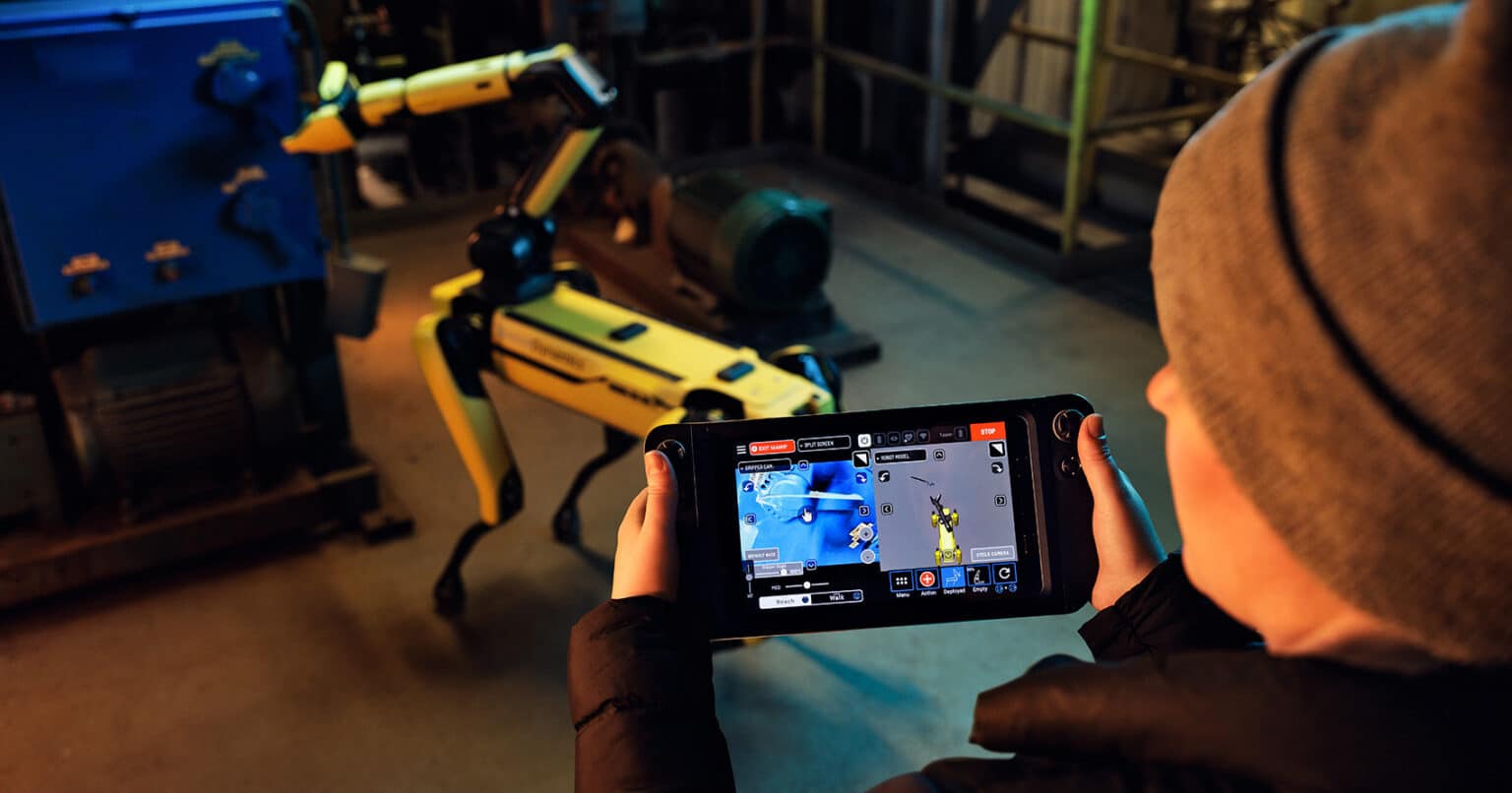

Boston Dynamics Spot quadruped with integrated 6-DOF arm and gripper. Arm weighs 8 kg, 984 mm reach, 11 kg max lift, 5 kg continuous lift at 0.5 m extension. Gripper with 175 mm aperture and 130 N clamp force. 1800 mm max reach height. Manual, semi-automated, and fully automated control via tablet and API.
$140,000.00Backorder
1
- Ships from San Francisco
- Authorized distributor
- In-house support
Key Specifications
15 kg
Net weight
984 mm
Arm Reach
6 + gripper
Arm DOF
All Specifications
BrandBoston Dynamics
CategoryQuadruped Robot
AvailabilityBackorder
Net weight15 kg
Robot Weight32.7 kg (Spot) + 8 kg (Arm)
Max Lift11 kg
Continuous Lift5 kg @ 0.5 m
Gripper Aperture175 mm
Max Drag (Carpet)25 kg
ControlTablet, API, autonomous
Arm DOF6 + gripper
Arm Reach984 mm
Max Reach Height1800 mm
Max Endpoint Speed10 m/s
Gripper Force130 N peak
