Benewake TF02-Pro LiDAR
Benewake

Benewake TF02-Pro LiDAR

$145.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

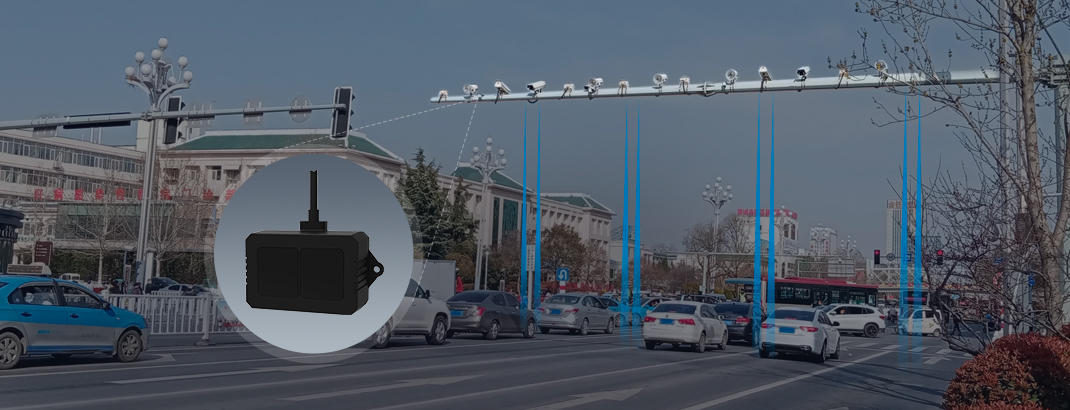

The Benewake TF02-Pro LiDAR lidar from Benewake targets developers building production or prototype robotic systems. Benewake TF02-Pro is a time-of-flight LiDAR, ranging performance up to 40m. TF02 Pro liDAR is widely used in drone altitude holding, intelligent transportation, etc

Delivery / Pickup Options
Order summaryUSD
Merchandise$145.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$66.09
Estimated total before tax$211.09

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

DC 5V~12V
Supply Voltage
0.6 kg
Net weight
69mm × 41.5mm × 26mm
Dimension (L×H×W)
≤1W
Power Consumption

All Specifications

BrandBenewake
CategoryLiDAR
AvailabilityBackorder
Net weight0.6 kg
Operating Range (Indoor 0Klux / Outdoor 100Klux)0.1m~40m @90% reflectivity 0.1m~13.5m @10% reflectivity
Frame Rate1Hz~1000Hz (adjustable, default 100Hz)
Ambient Light Immunity100 Klux
Enclosure RatingIP65
Photobiological SafetyClass 1 (IEC60825)
Central Wavelength850nm
Light SourceVCSEL
Field Of View (Fo V)3°
Dimension (L×H×W)69mm × 41.5mm × 26mm
Enclosure MaterialABS/PC
Operating Temperature-20°C ~ 60°C
Storage Temperature-30°C ~ 80°C
Weight (With Cables)50g
Cable Length80 cm
UART Default Baud Rate115200
UART Data Bit8
UART Stop Bit1
UART ParityNone
I²C Max Transmission Rate400kbps
I²C Master/Slave ModeSlave
I²C Default Address0x10
I²C Address Range0x10 ~ 0x7F
Accuracy±5cm @ (0.1m~5m) ; ±1% @ (5m~40m)
Distance Resolution1cm
Repeatability1σ：<2cm (0.1m~35m @90% reflectivity)
