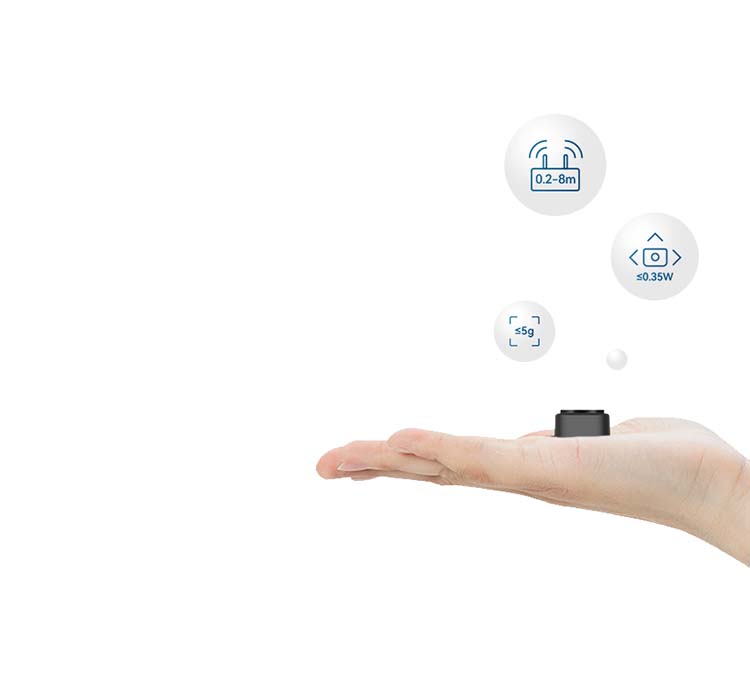

Benewake TF-Luna LiDAR
Benewake

Benewake TF-Luna LiDAR

$40.00Backorder
  • Ships from San Francisco
  • Authorized distributor
  • In-house support

The Benewake TF-Luna LiDAR lidar from Benewake targets developers building production or prototype robotic systems. Benewake TF-Luna is an affordable single-point LiDAR range finder. It can achieve stable, accurate and highly sensitive range measurement for robotics, drones, and more

Delivery / Pickup Options
Order summaryUSD
Merchandise$40.00
Expedited delivery optionIncluded
Shipping (U.S. estimate)$65.30
Estimated total before tax$105.30

Final shipping and tax are calculated from your delivery address at checkout.

Key Specifications

3.7V - 5.2V
Supply Voltage
0.6 kg
Net weight
35mm × 21.25mm × 12.5mm
Dimension (L×W×H)
≤0.35W
Power Consumption

All Specifications

BrandBenewake
CategoryLiDAR
AvailabilityBackorder
Net weight0.6 kg
Operating Range0.2m ~ 8m@90% reflectivity (indoor 0klux) ; 0.2m ~ 2.5m@10% reflectivity (indoor 0klux) ; 0.2m ~ 8m@90% reflectivity (outdoor 90klux) ; 0.2m ~ 2.5m@10% reflectivity (outdoor 90klux)
Frame Rate1-250Hz
Ambient Light Immunity70Klux
Operation Temperature-10℃ ~ 60℃
Enclosure Rating/
Light SourceVCSEL
Central Wavelength850nm
Photobiological SafetyClass 1 (IEC60825)
Field Of View (FOV)2^5°
Dimension (L×W×H)35mm × 21.25mm × 12.5mm
HousingABS+PC
Storage Temperature-20℃ ~ 75℃
Weight<5g
UART Default Baud Rate115200 (adjustable)
UART Max Transmission Rate400kbps
UART Data Bit8
UART Stop Bit1
UART ParityNone
I²C Master/Slave ModeSlave
I²C Default Address0x10
I²C Address Range0x08 ~ 0x77
Accuracy±6cm @(0.2m-3m), ±2% @(3m-8m)
Distance Resolution1cm
