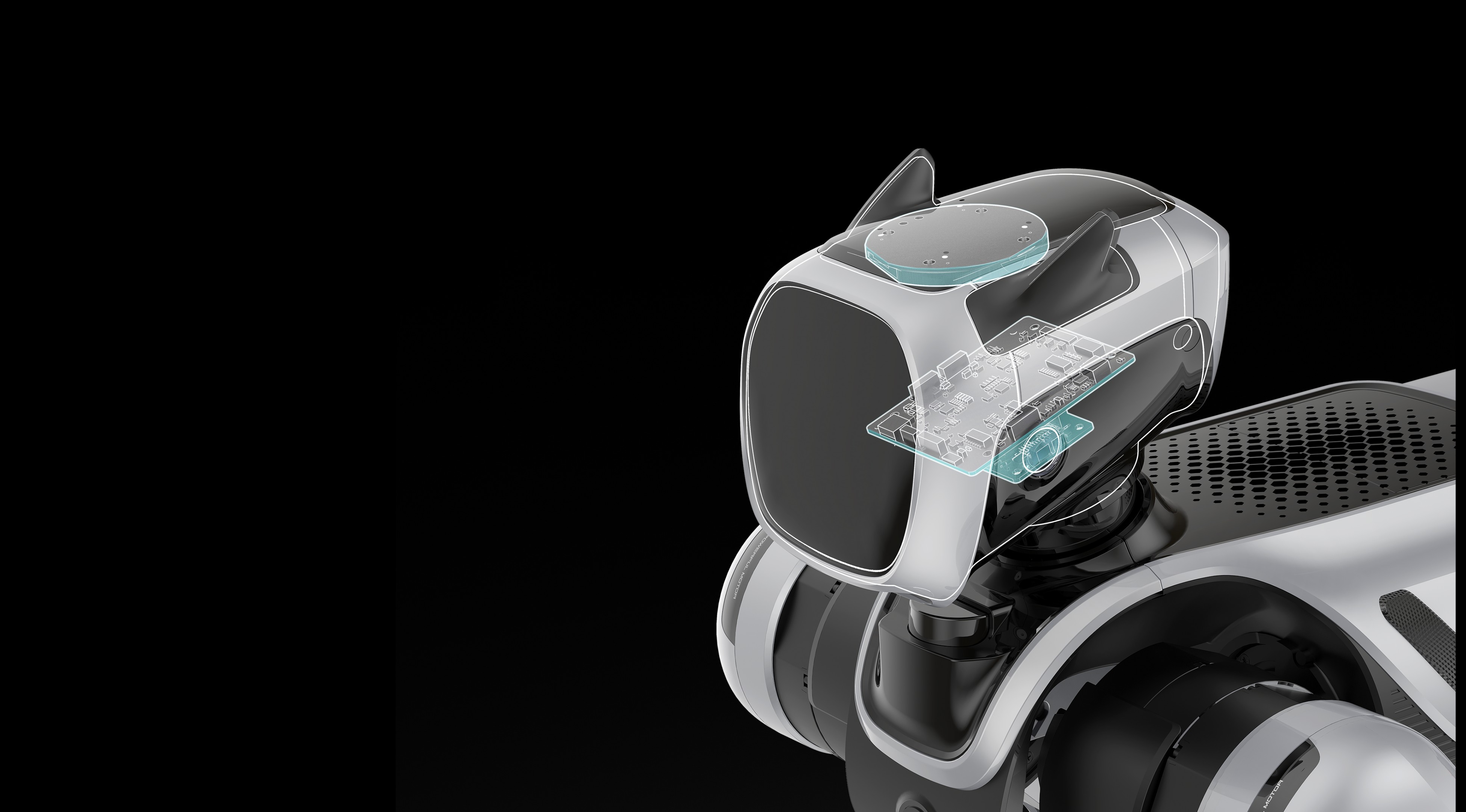

MagicLab MagicDog Robot
MagicLab offers the MagicLab MagicDog Robot, a humanoid robot suited to demanding robotics and automation workloads. MagicLab MagicDog Robot specifications include MagicDog PRO of MagicDog EDU, Dimensions (Standing of L x W x H): 670 × 550 × 560 mm, and Dimensions (Lying Down of L x W x H): 720 × 440 × 290 mm. MagicLab MagicDog Robot gives engineers a practical humanoid robot option for lab validation and field rollout
Contact for pricingBackorder
- Ships from San Francisco
- Authorized distributor
- In-house support
Key Specifications
22V - 36V
Voltage
3.0 m/s
Maximum Speed
40 kg
Net weight
670 × 550 × 560 mm
Dimensions
Approx. 37.5 N·m
Maximum Joint Torque
≈5kg (Max. ≈10kg)
Payload
All Specifications
BrandMagicLab
CategoryHumanoid Robot
AvailabilityBackorder
Net weight40 kg
Dimensions670 × 550 × 560 mm
Magic Dog PROMagicDog EDU
Dimensions (StandingL x W x H): 670 × 550 × 560 mm
Dimensions (Lying DownL x W x H): 720 × 440 × 290 mm
Actuator TypeHigh Power Density Actuation Unit
Aluminum Alloy Precision Joint Motor12
Maximum Obstacle Height15 cm
Maximum Climbing Angle40°
MIC Array●
Sensors2D LiDAR + Dual Camera + Depth Camera + 4K HD Camera + Fisheye Camera + Ultrasonic Sensor
Adapter35.6V 3.5A 149W
Smart Following●
Emotion Engine●
Head Torso Coordination●
All Terrain Mode●
Human Recognition●
Patrol Mode●
Smart Obstacle Avoidance●
Graphical Programming●
Acrobatic Movements●
Facial Expression Display●
Lighting Display●
AI Voice Interaction[1]●
Touch Interaction●
Photo And Video●
Real Time Transmission●
SDK Support[2]○
OTA UpgradeSupport
Carrying Handle●
Maximum Joint TorqueApprox. 37.5 N·m
Degrees Of Freedom (DOF)13
Maximum Speed3.0 m/s
Payload≈5kg (Max. ≈10kg)
Net Weight (Excluding Battery)15.8 kg
Maximum Power3200 W
Voltage22V - 36V
Basic Computing Power8-Core High-Performance CPU
Battery29.6V 8200mAh 240.7W Fast Release
Battery Charging Dock●
Battery Life1.5-3.0 h
Joint Range Of Motion (Torso)-37.0° ~ 45.0°
Joint Range Of Motion (Thigh)-207.5° ~ 72.5°
Joint Range Of Motion (Shank)-143.0° ~ 30.0°
Motion Imitation●
