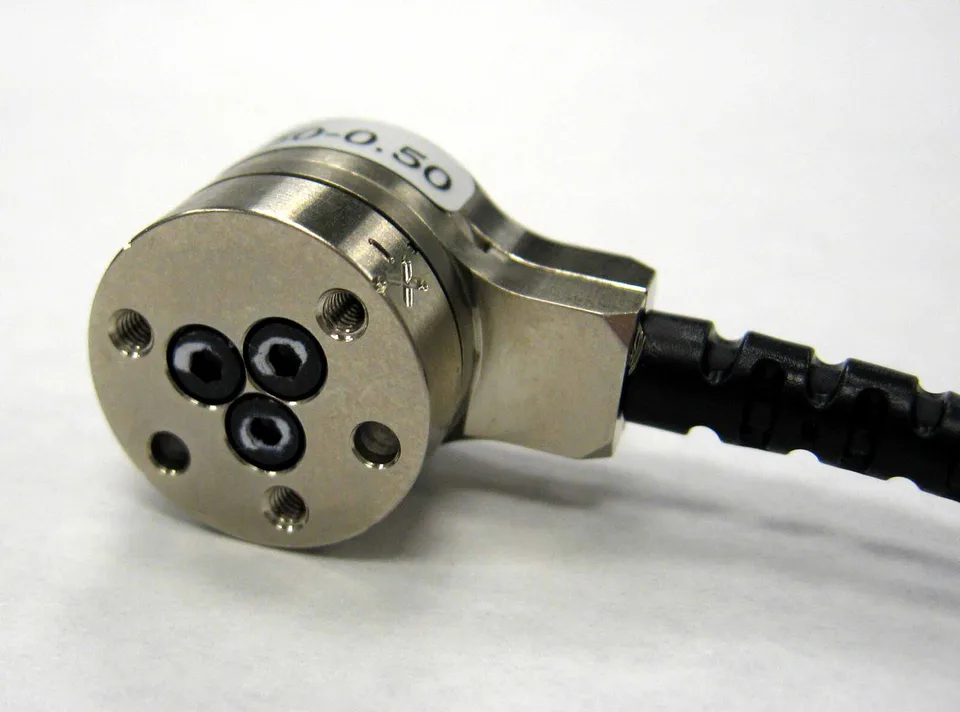

ATI Nano17 6-Axis F/T Sensor

Smallest commercially available 6-axis F/T transducer in the world. 17 mm diameter, only 9.1 g. Fx/Fy: +/- 50 N, Fz: +/- 70 N. Resolves down to 0.318 gram-force. Industry standard for fingertip-mounted manipulation research.

ATI Nano17 6-Axis F/T Sensor

From $4,600

Contact for availability. Contact us for configuration and lead time.

Request a Quote Flexible Leasing Available

ATI Industrial Automation via Silicon Valley Robotics Center · info@roboticscenter.ai

View manufacturer reference →

Product Details

ATI Nano17 6-Axis F/T Sensor Specifications

ManufacturerATI Industrial Automation
CategoryForce/Torque Sensor
ModelNano17
Axes6
Fx Max N50
Fy Max N50
Fz Max N70
Tx Max Nm0.5
Diameter Mm17
Weight G9.1
Resolution Grams0.318
Lead TimeContact sales for lead time
Weight0.01 kg
