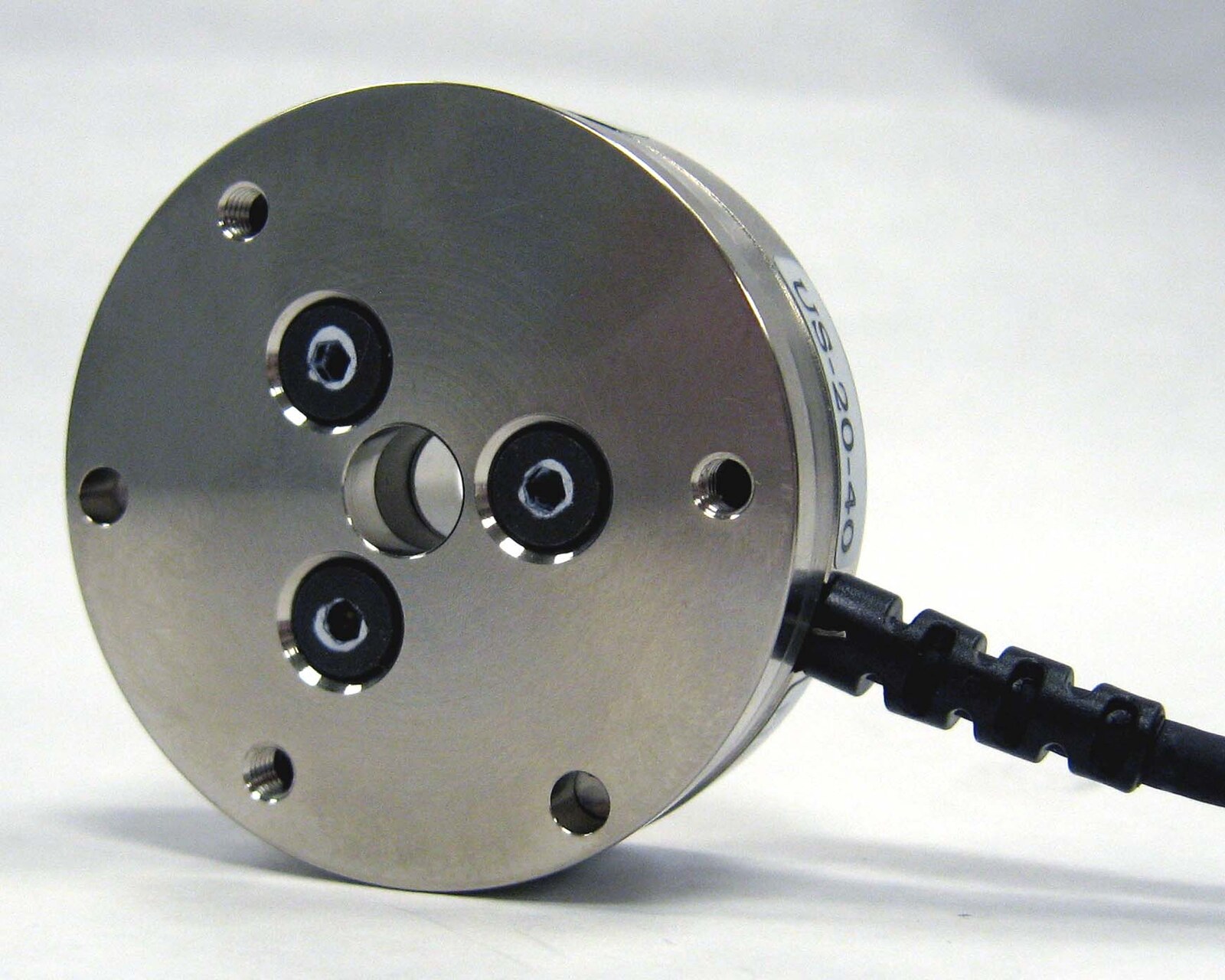

ATI Mini40 6-Axis F/T Sensor

Compact 6-axis force/torque sensor. 40 mm diameter, 12.2 mm tall, only 50 g. Fx/Fy: +/- 80 N, Fz: +/- 240 N. Silicon strain gauges (75x stronger signal than foil) yielding near-zero noise.

ATI Mini40 6-Axis F/T Sensor

From $5,750

Contact for availability. Contact us for configuration and lead time.

Request a Quote Flexible Leasing Available

ATI Industrial Automation via Silicon Valley Robotics Center · info@roboticscenter.ai

View manufacturer reference →

Product Details

ATI Mini40 6-Axis F/T Sensor Specifications

ManufacturerATI Industrial Automation
CategoryForce/Torque Sensor
ModelMini40
Axes6
Fx Max N80
Fy Max N80
Fz Max N240
Tx Max Nm4
Tz Max Nm4
Diameter Mm40
Height Mm12.2
Weight G50
Through HoleTrue
Lead TimeContact sales for lead time
Weight0.05 kg

Ready to Order?

ATI Industrial Automation hardware integrated and supported by Silicon Valley Robotics Center.
