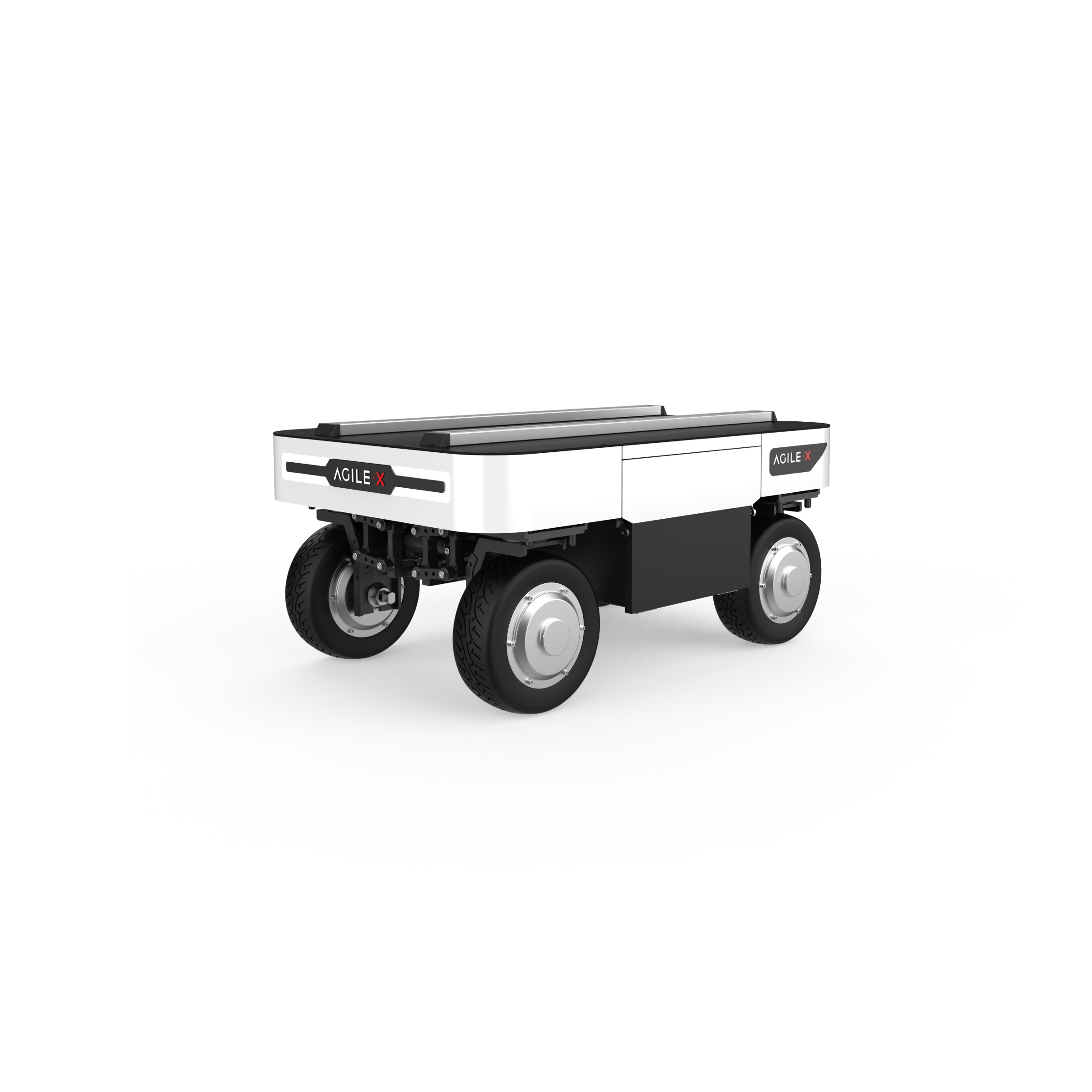

AgileX Ranger Mini 3.0

Compact all-terrain UGV with four-wheel independent suspension and four steering modes (Spin, Traverse, Diagonal, Ackermann). 100 kg payload, 0° turning radius, 7-8 hr runtime.

AgileX Ranger Mini 3.0

From $6,500

Contact for availability. Contact us for configuration and lead time.

Request a Quote Flexible Leasing Available

AgileX via Silicon Valley Robotics Center · info@roboticscenter.ai

View manufacturer reference →

Product Details

AgileX Ranger Mini 3.0 Specifications

ManufacturerAgileX
CategoryMobile Platform
ModelRanger-Mini-3.0
Max Payload Kg100
Max Speed Ms2.0
Max Speed Kmh7.2
Battery Runtime Hr7.5
Range Km35
Weight Kg63
Ip RatingIP54
Dimensions Mm720x500x345
Ground Clearance Mm105
Climbing Angle Deg15
Battery48V 24Ah Li-ion
Steering Modes4
Lead TimeContact sales for lead time
Weight63 kg
