How Much Does a Robot Arm Cost in 2026?

The 5 Robot Arm Price Tiers

Robot arm pricing in 2026 falls into five distinct tiers. Understanding which tier matches your application prevents both overspending and under-specifying. Here is the landscape at a glance:

Tier 1: Under $1,000 - DIY and Open-Source

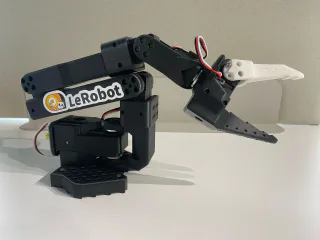

The open-source robotics movement has made functional robot arms accessible for under $1,000. The SO-101 and SO-100 designs from Hugging Face's LeRobot project use 3D-printed components and off-the-shelf Dynamixel XL330 servos. Total bill of materials: $300-$500. You need a 3D printer, soldering skills, and patience for assembly and calibration.

These arms are excellent for learning, prototyping imitation learning pipelines, and collecting simple manipulation data. They are not suitable for production use: payload is limited to 100-300g, repeatability is 2-5mm, and the plastic construction wears over time. But for the price, nothing else comes close for getting started in robot learning.

Tier 2: $1,000 - $10,000 - Prosumer and Research Entry

This is where most researchers and small teams enter the market. The key arms in this range:

• OpenArm ($3,500): SVRC's open-source 6-DOF arm designed specifically for AI data collection. ROS2 native, 1.5kg payload, 550mm reach, 0.1mm repeatability. The best value for imitation learning and teleoperation research. Full documentation, active community, and available for immediate shipping through SVRC.
• xArm 5 Lite ($4,500): UFACTORY's entry-level industrial arm. 3kg payload, 700mm reach, 0.1mm repeatability. Solid Python SDK. Popular in research labs that need more payload than OpenArm.
• Dobot MG400 ($3,000): Compact desktop arm. 750g payload, 440mm reach. Good for structured pick-and-place. Limited ROS support compared to xArm and OpenArm.
• WidowX-250 ($3,100): Trossen Robotics Dynamixel-based arm. Popular as a leader arm in ALOHA setups. 250g payload at full extension. Excellent ROS2 and MoveIt2 integration.

Tier 3: $10,000 - $30,000 - Research-Grade Cobots

Arms in this tier offer the payload, reach, and repeatability needed for serious manipulation research and small-batch production:

• xArm 6 ($8,000): 5kg payload, 700mm reach, 6-DOF. The workhorse of mid-range research labs. Excellent SDK, ROS2 support, and a large user community.
• xArm 7 ($12,000): 7-DOF version with redundant joint for better null-space control. Preferred for tasks requiring obstacle avoidance during manipulation.
• Unitree Z1 ($15,000): Lightweight 4kg-payload arm with integrated joint torque sensors. Often paired with Unitree quadrupeds for mobile manipulation research.
• Kinova Gen3 Lite ($18,000): 6-DOF, 0.5kg payload (lower than competitors), but excellent force control and a polished SDK. Popular in assistive robotics research.
• Kinova Gen3 ($28,000): 7-DOF, 4kg payload. The gold standard for dexterous manipulation research before Franka. Torque sensing at every joint. ROS2 native.
• ViperX-300 S2 ($4,800): Trossen's larger Dynamixel arm. 750g payload, 300mm reach. The standard follower arm in ALOHA bimanual setups. Very affordable for what it offers.

Tier 4: $30,000 - $80,000 - Industrial Cobots

This is the core collaborative robot market. These arms are production-ready with safety certifications, long warranties, and industrial support:

• Franka Research 3 / FR3 ($25,000-$30,000): 7-DOF with torque sensing at every joint. The most popular arm in academic manipulation research. Sub-millimeter repeatability, excellent force control, and a real-time capable control interface. The Franka Desktop is the newer, more compact version at similar pricing.
• Universal Robots UR5e ($35,000): 5kg payload, 850mm reach. The best-selling cobot worldwide. Mature ecosystem with 300+ UR+ certified peripherals. PolyScope programming interface is the industry standard for ease of use.
• Universal Robots UR10e ($45,000): 12.5kg payload, 1300mm reach. Same ecosystem as UR5e but for heavier tasks. Popular in palletizing, machine tending, and welding.
• ABB GoFa CRB 15000 ($45,000): 5kg payload, lead-through programming. ABB's answer to Universal Robots. Strong in automotive and electronics manufacturing.

Tier 5: $80,000+ - Industrial and High-Precision

Arms at this price point are built for demanding production environments with strict cycle time, precision, and reliability requirements:

• Kuka LBR iiwa 7 R800 ($80,000): 7-DOF, 7kg payload, torque sensors in all joints. Industry-leading force control for sensitive assembly tasks. Used in aerospace, medical device manufacturing, and automotive final assembly.
• Kuka LBR iiwa 14 R820 ($95,000): 14kg payload variant. Same control quality, higher capacity.
• Fanuc CRX-25iA ($60,000-$80,000): 25kg payload collaborative robot. The bridge between cobots and traditional industrial arms.
• High-payload industrial arms ($80,000-$150,000+): Fanuc M-710, ABB IRB 6700, Kuka KR QUANTEC. Payloads from 30kg to 300kg+. These are traditional industrial robots, not cobots, and require safety caging.

Full Robot Arm Pricing Comparison Table (2026)

Prices are approximate 2026 list prices in USD. Actual prices vary by region, configuration, and volume discounts. Lease prices assume 36-month term through SVRC or manufacturer financing.

What Affects Robot Arm Price?

Robot arm pricing is not arbitrary. Seven technical factors drive the cost:

• Degrees of freedom (DOF): Each additional joint adds a motor, encoder, gearbox, and control electronics. A 7-DOF arm costs 20-40% more than an equivalent 6-DOF arm from the same manufacturer.
• Payload capacity: Higher payload demands larger motors, stiffer structural members, and heavier-duty harmonic drives or cycloidal gearboxes. Doubling payload roughly doubles the arm cost within a product line.
• Repeatability: Achieving sub-0.05mm repeatability requires precision-ground harmonic drives, high-resolution encoders (17-bit+), and tight manufacturing tolerances. This is the primary cost difference between research-grade and industrial-grade arms.
• Torque sensing: Arms with torque sensors at every joint (Franka, Kuka iiwa, Kinova Gen3) cost significantly more but enable force control, collision detection, and compliant manipulation. Essential for research, optional for structured production.
• Brand and support: Universal Robots and ABB charge a premium for global support networks, extensive spare parts availability, and CE/ISO safety certifications. Chinese manufacturers (UFACTORY, Dobot, Unitree) offer similar specs at 40-60% lower prices with more limited support.
• ROS compatibility: Arms with official ROS2 drivers and MoveIt2 configurations are preferred by research teams. Most arms now support ROS2, but the quality of the driver and the size of the community varies significantly.
• End-effector interface: Standard ISO 9409-1 flanges are universal. Some arms (Dobot, entry-level models) use proprietary mounting, which limits gripper options and adds adapter costs.

Hidden Costs to Budget For

The arm itself is typically 40-60% of total deployment cost. Here is what catches first-time buyers:

• End effector ($200-$20,000): A simple parallel gripper (Robotiq 2F-85) costs $4,500. A vacuum gripper costs $200-$2,000. A dexterous hand (Inspire RH56) costs $8,000. Budget this from the start because the arm is useless without one.
• Controller/computer ($500-$3,000): Some arms include a controller (UR, Franka). Others require an external PC with real-time Linux and a dedicated GPU for perception. Budget $1,500-$3,000 for a capable workstation.
• Integration and mounting ($2,000-$50,000): Custom mounting, safety barriers, cable management, and workspace fixtures. Simple table-mount setups cost $500-$2,000. Full production cell integration with safety scanning and guarding: $15,000-$50,000.
• Training ($0-$5,000): Manufacturer training courses for UR and ABB run $2,000-$5,000 per person. Open-source arms (OpenArm, xArm) have free community documentation but require more self-directed learning.
• Maintenance ($500-$5,000/year): Annual maintenance contracts for industrial cobots cost 5-10% of the arm price. Research arms generally need less formal maintenance but budget for servo replacements and cable wear.
• Software licenses ($0-$15,000): Base control software is included. Advanced packages (offline programming, vision calibration, force control modules) are add-ons. RoboDK: $3,000-$8,000. Manufacturer vision packages: $5,000-$15,000. ROS2/MoveIt2: free.

Total Cost of Ownership: 3 Worked Examples

To give realistic budgets, here are three deployment scenarios with itemized first-year costs:

Example 1: University Research Lab ($15,000/year)

• OpenArm x2: $7,000
• Parallel grippers x2: $400 (3D-printed from OpenArm designs)
• Workstation (Ubuntu, GPU): $2,500
• RealSense cameras x3: $900
• Mounting and workspace: $800
• Cables, adapters, misc: $400
• Software: $0 (ROS2, LeRobot, open-source stack)
• Total first year: ~$12,000
• Annual ongoing: ~$1,500 (replacement servos, consumables)

Example 2: Startup Data Collection Pilot ($40,000/year)

• xArm 6 x2: $16,000
• Robotiq 2F-85 grippers x2: $9,000
• Workstation with RTX 4090: $3,500
• Intel RealSense D455 x4: $1,200
• Meta Quest 3 (teleoperation): $500
• Custom mounting and workspace: $3,000
• Integration and setup (SVRC service): $5,000
• Software licenses: $0 (open-source stack)
• Total first year: ~$38,200
• Annual ongoing: ~$4,000 (maintenance, consumables, cloud storage)

Example 3: Enterprise Production Cell ($200,000/year)

• UR10e x2: $90,000
• Custom end effectors: $25,000
• Safety system (light curtains, scanner): $15,000
• Vision system (3D camera + software): $20,000
• Integration engineering (system integrator): $35,000
• Training (2 operators + 1 programmer): $8,000
• Spare parts inventory: $5,000
• Total first year: ~$198,000
• Annual ongoing: ~$25,000 (maintenance contract, consumables, software updates)

Buy vs Lease vs Rent

Three ways to acquire a robot arm, each suited to different situations:

• Buy outright: Best when you have a clear, long-term application (3+ years) and capital budget available. You own the asset, depreciate it, and can modify it freely. Lowest total cost over 3-5 years.
• Lease (12-36 months): Best for pilots, funded research projects, and teams that need to preserve cash. Monthly payments of 3-5% of arm value. At lease end, you can buy out (typically 10-15% of original price), return, or upgrade. SVRC offers leasing on UR, Franka, xArm, and OpenArm starting at $250/month.
• Short-term rental (1-6 months): Best for proof-of-concept, seasonal production peaks, or testing before committing. Higher monthly cost (8-12% of arm value) but no long-term commitment. SVRC offers short-term rental on select models.

For most startups and research teams, we recommend leasing for the first year, then buying if the project is validated. This reduces risk and preserves capital for other infrastructure. View our leasing options.

Used Robot Arms: Where to Buy and What to Check

The used robot arm market has matured significantly. Expect 30-50% off new prices for arms that are 2-5 years old. Key sources:

• Surplus Robot (surplusrobot.com): Largest online used robot marketplace. Inspected and tested units. 90-day warranty on most items.
• Robot Marketplace: Dealer network for used industrial robots. Good for higher-end UR, ABB, and Kuka units.
• Direct from labs: Universities and research labs frequently sell arms when projects end or grants expire. Check department surplus listings and robotics lab websites.
• Manufacturer refurbished: Universal Robots and ABB offer certified refurbished programs with full warranty at 20-30% discount.

What to check before buying used:

• Total operating hours and cycle count (available from the controller)
• Joint backlash test: manually push each joint and check for play
• Repeatability test: command 100 moves to the same point and measure variance
• Controller firmware version and upgrade eligibility
• Cable condition, especially at joint flex points
• Any previous collision damage (check joint torque readings at zero-gravity position)
• Remaining warranty or service contract transferability

Best Value Picks by Use Case

How SVRC Helps You Get the Right Arm

Silicon Valley Robotics Center stocks, ships, and supports robot arms across multiple tiers:

• In stock for immediate shipping: OpenArm, DK1 dexterous hand, SO-101 kits, and accessories.
• Available for lease: UR5e, UR10e, Franka FR3, xArm 5/6/7, Kinova Gen3, and OpenArm. Monthly and annual terms. All leases include setup support and a maintenance SLA.
• Sourcing service: We can source almost any arm on this list, including negotiating volume discounts, handling import logistics for Chinese-manufactured arms, and coordinating with integrators. No markup on sourced hardware; we earn on the service and integration side.
• Integration packages: We provide turnkey data collection setups (arm + gripper + cameras + software + workspace) ready for teleoperation and imitation learning on day one.

Frequently Asked Questions

What is the cheapest robot arm?

The cheapest functional robot arms are open-source DIY builds like the SO-101 and SO-100, which cost $300-$500 in parts. You need a 3D printer and basic electronics skills. The cheapest pre-assembled option for serious work is the Dobot MG400 at around $3,000, or the OpenArm at $3,500.

How much does a Franka robot arm cost?

The Franka Research 3 (FR3) costs approximately $25,000-$30,000 USD depending on configuration. This includes the arm, controller, and base software. End effectors, additional sensors, and integration are extra. Academic pricing with educational discounts may be available.

Can I lease a robot arm monthly?

Yes. SVRC offers monthly leasing on popular models including UR5e, xArm, Franka FR3, and OpenArm starting from $250/month. Most manufacturers also offer financing through third-party leasing companies. Leasing is ideal for pilots, research projects, and seasonal production needs.

What is the best robot arm under $10,000?

For research and data collection, the OpenArm ($3,500) and xArm 5 Lite ($4,500) offer the best value under $10,000. The OpenArm is open-source and ROS2-native with an active community. The xArm 5 Lite has higher payload (3kg vs 1.5kg) and industrial-grade build quality.

Do robot arm prices include software?

Most robot arms include basic control software and a teach pendant or web-based interface. However, advanced features like vision integration, force control packages, offline programming, and simulation environments are typically add-ons costing $2,000-$15,000 depending on the manufacturer. Open-source arms (OpenArm, SO-101) use free ROS2/MoveIt2 software stacks.

How much does a UR5e cost?

The Universal Robots UR5e costs approximately $35,000 USD for the arm and controller. With a Robotiq gripper ($4,500), mounting ($500-$2,000), and basic integration, expect $42,000-$50,000 for a deployment-ready system. Volume pricing for 3+ units can reduce per-unit cost by 10-15%.

Are used robot arms worth buying?

Used robot arms can save 30-50% off new prices and are generally worth buying if you verify joint wear, controller condition, and remaining warranty. Buy from reputable dealers (Surplus Robot, manufacturer refurbished programs) that offer inspection reports and short-term warranties. Avoid arms with collision damage history or expired controller firmware.

What is the total cost of owning a robot arm for one year?

Total first-year cost varies widely by tier. A research lab setup with OpenArm runs $12,000-$20,000 total (arm + computer + end effector + integration). A startup pilot with xArm or UR runs $35,000-$55,000. An enterprise deployment with full integration and training runs $150,000-$250,000+. Annual ongoing costs are typically 10-15% of the initial investment.
