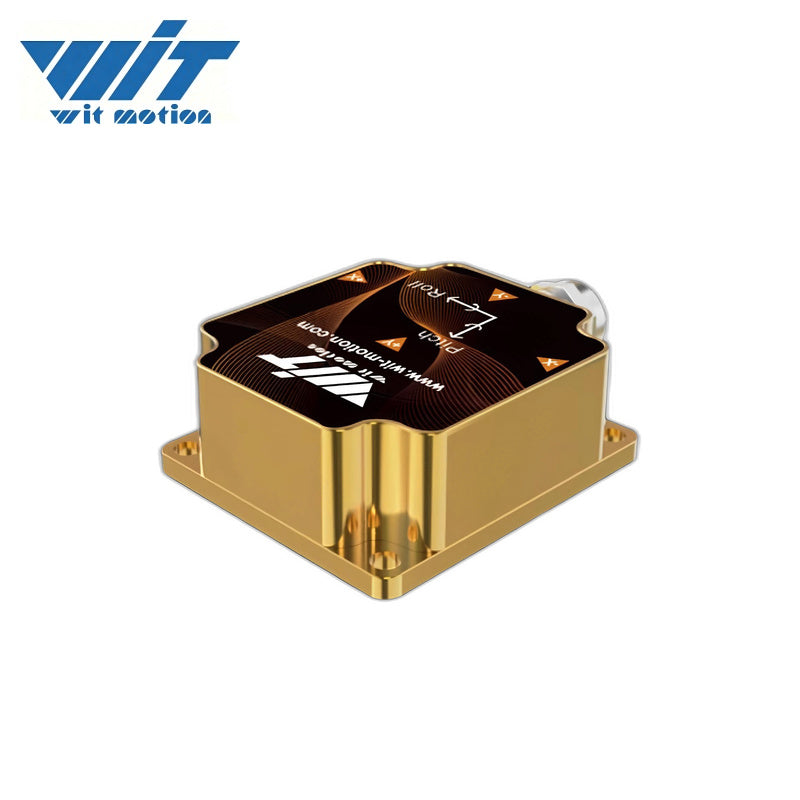

WitMotion HWT6073 Sensor
WitMotion offers the WitMotion HWT6073 Sensor, a sensor suited to demanding robotics and automation workloads. WitMotion HWT6073 Sensor specifications include Operating Temperature of -40°C ~ +85°C, Storage Temperature of -40°C ~ +100°C, and Shock Resistance of 20000g. WitMotion HWT6073 Sensor gives engineers a practical sensor option for lab validation and field rollout
$760.00Backorder
1
- Ships from San Francisco
- Authorized distributor
- In-house support
Key Specifications
9V ~ 36V (default 12V)
Supply Voltage
0.1 kg
Net weight
144mW
Power Consumption
All Specifications
BrandWitMotion
CategorySensor
AvailabilityBackorder
Net weight0.1 kg
Operating Temperature-40°C ~ +85°C
Storage Temperature-40°C ~ +100°C
Shock Resistance20000g
Protection ClassIP68
Weight122.5g
Output ContentOn‑chip time, 3‑axis Accel, 3‑axis Gyro, 3‑axis Angle
Startup Time1000ms
Range (Accelerometer)±2g
Sampling Rate (Accelerometer)2kHz
Static Zero Drift (Accelerometer)±25 mg
Temp. Drift (Accelerometer)±0.1 mg/°C
Bias Stability (Accelerometer, 10s Smoothing)XY:3.5ug; Z:5ug
Bias Instability (Accelerometer, Allan)XY:1.5ug; Z:3ug
Range (Gyroscope)±400°/s
Sampling Rate (Gyroscope)50kHz
Static Zero Drift (Gyroscope)±1°/s
Bias Stability (Gyroscope, 10s Smoothing)3.5°/h
Bias Instability (Gyroscope, Allan)2°/h
Range (Pitch/Roll)X: ±180°, Y: ±90°
Temp. Drift (Inclination)±0.05°
Range (Yaw)Z: ±180°
Resolution (Accelerometer)0.0005 (g/LSB)
Bandwidth (Accelerometer)5 ~ 256Hz
Resolution (Gyroscope)0.061°/s/(LSB)
Inclination Accuracy (Static)0.001°
Resolution (Angle, Horizontal)0.001°
Resolution (6‑Axis, Static)0.1°
Resolution (Horizontal)0.001°
Supply Voltage9V ~ 36V (default 12V)
Operating Current (Active, 12V)12mA
Power Consumption144mW
Communication InterfaceRS485, 4800~230400bps (default 9600)
Power‑Off Angle RetentionSaved for approx. 2 hours; resets to zero after longer power‑off
