AgileX

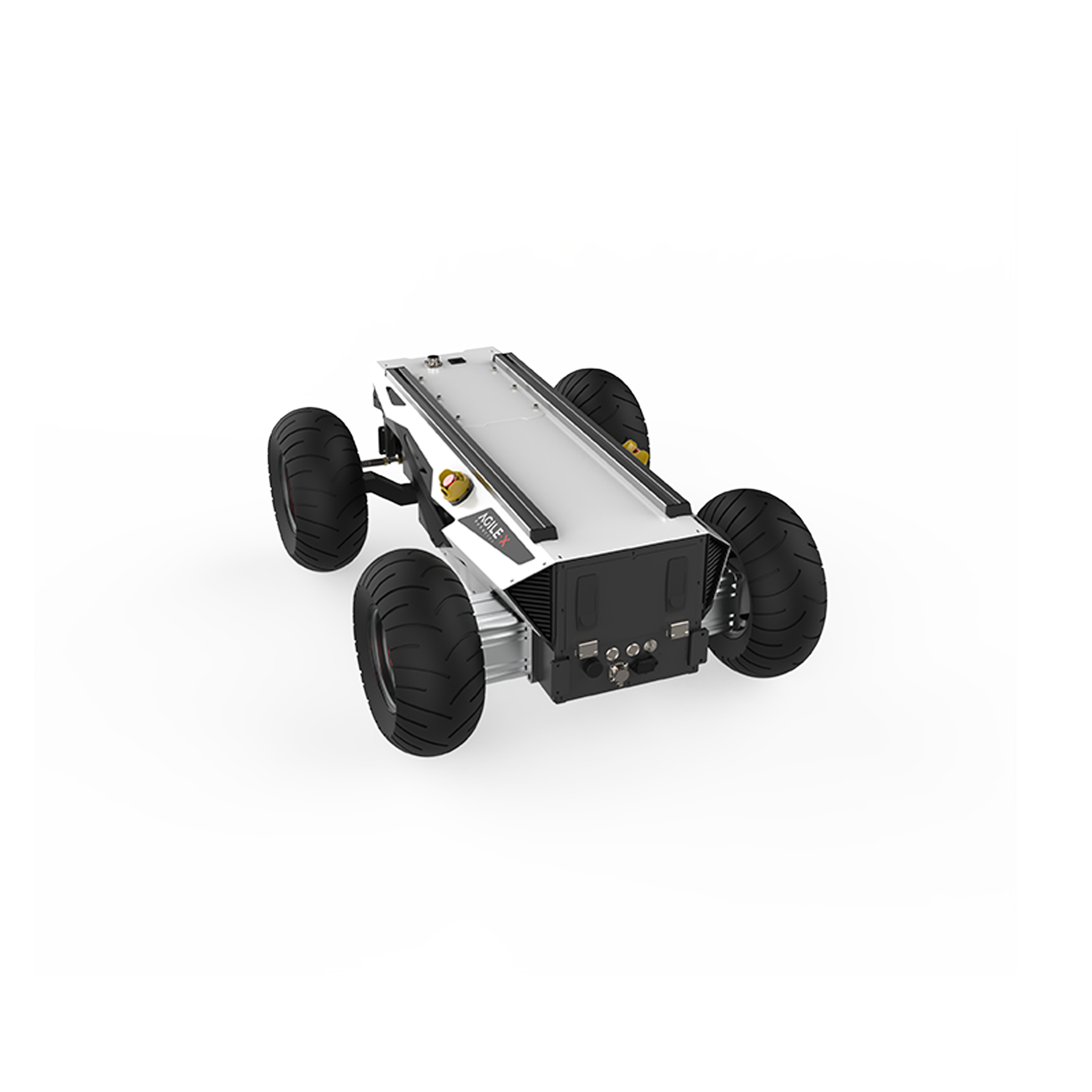

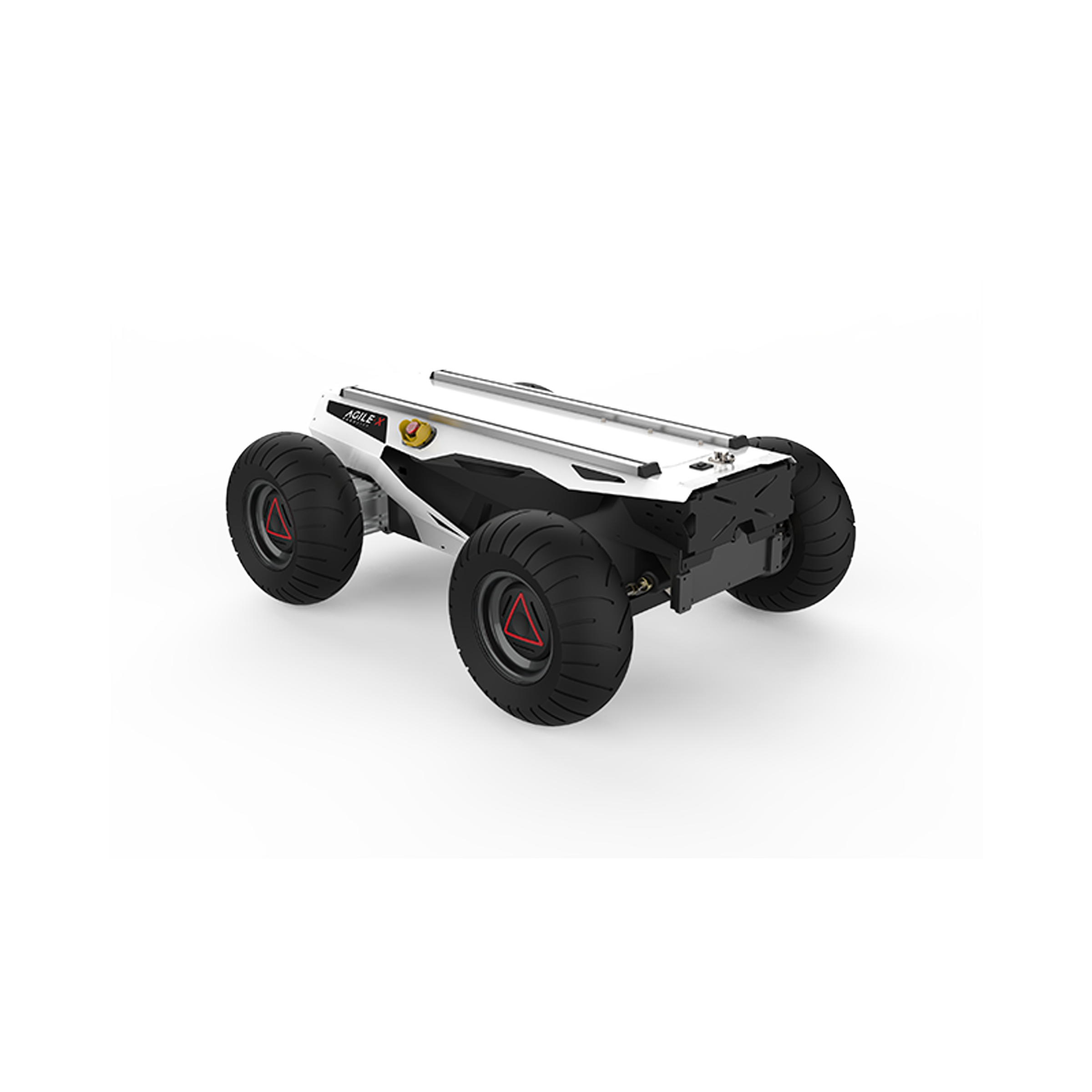

AgileX Hunter 2.0
Ackermann steering outdoor UGV chassis with 150kg payload, 980×745×380mm, 65-72kg. Suitable for autonomous vehicle research and outdoor navigation tasks. 24V 30Ah battery (upgradeable to 60Ah), 3.5H charge. Compatible with AUTO KIT PRO and Autoware. Contact for pricing.
$18,000.00Backorder
1
- Ships from San Francisco
- Authorized distributor
- In-house support
Key Specifications
1.5 m/s
Max Speed
15 kg
Net weight
980 × 745 × 380 mm
Dimensions
150kg
Max Payload
24V 30Ah (60Ah upgrade available)
Battery
All Specifications
BrandAgileX
CategoryMobile Robot
AvailabilityBackorder
Net weight15 kg
Dimensions980 × 745 × 380 mm
Platform Weight65-72kg
Climbing Ability<= 10° (with load)
IP RatingIP22
DriveAckermann + wheel drive
Charge3.5H
Obstacle Clearance50 mm
Max Payload150kg
Max Speed1.5 m/s
Battery24V 30Ah (60Ah upgrade available)
CommunicationStandard Can,232 Serial Port
Max Travel40 km
