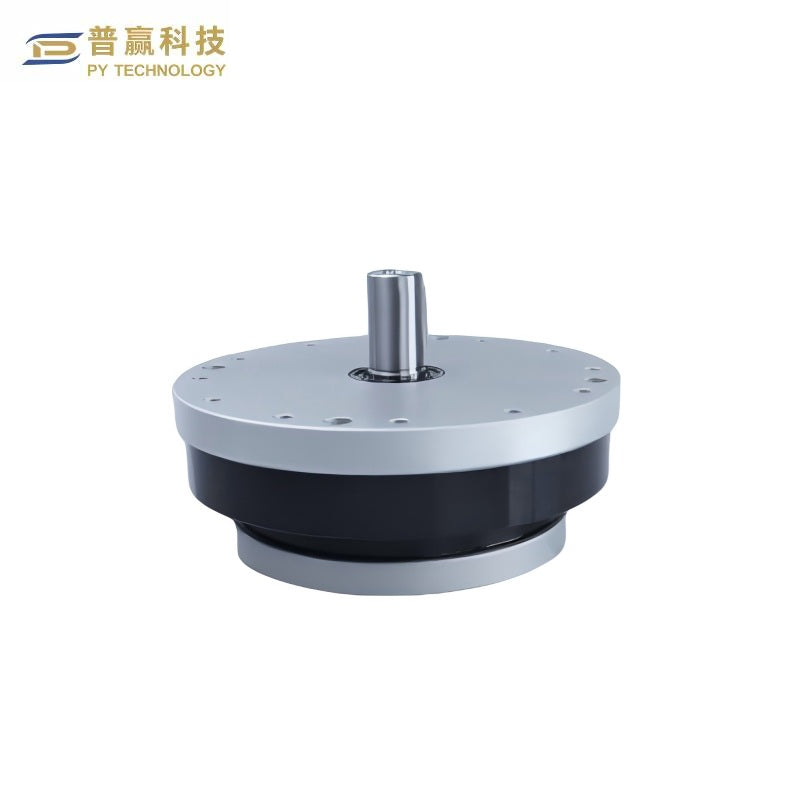

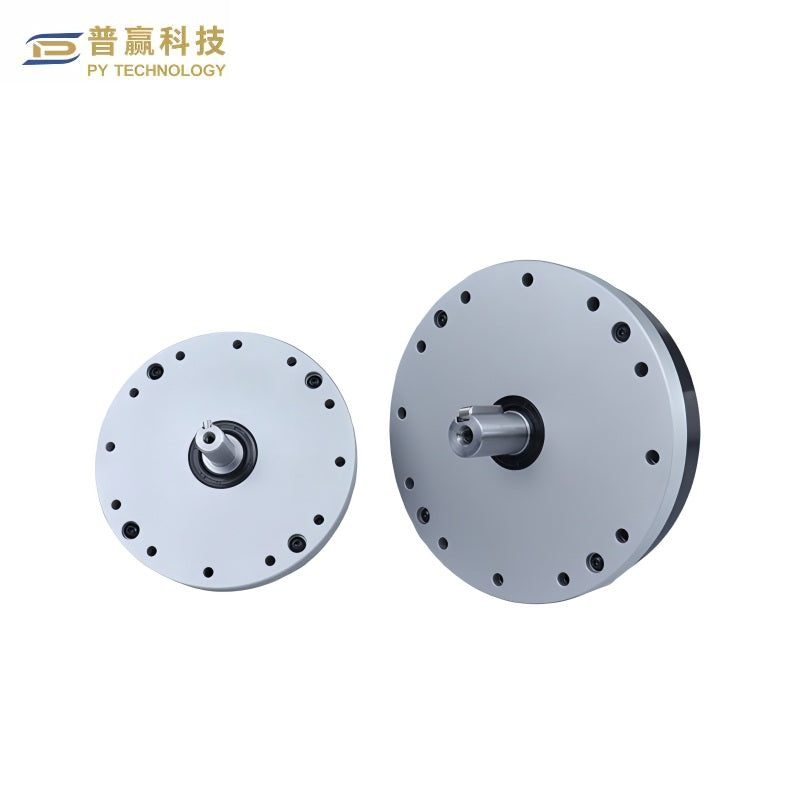

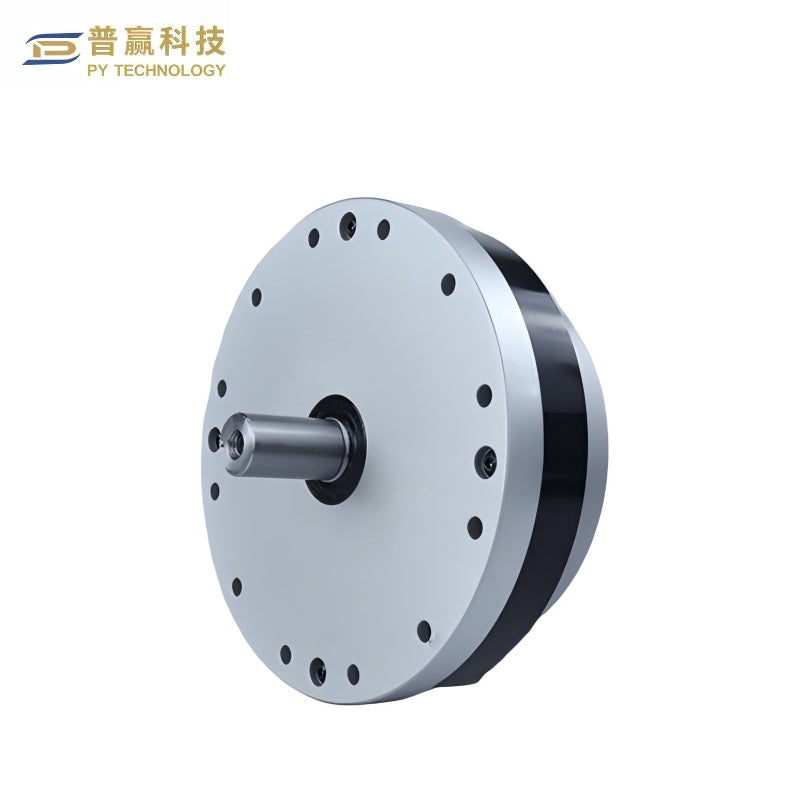

PY TECHNOLOGY HBJ Series Harmonic Reducer
PY TECHNOLOGY HBJ Series Harmonic Reducer is a actuator & motor built by PY TECHNOLOGY for integration into automated systems and research platforms. PY TECHNOLOGY HBJ Series Harmonic Reducer specifications include Model of HBJ-14, Reduction Ratio of 30, and Weight (kg) of 4.93. PY TECHNOLOGY HBJ Series Harmonic Reducer helps robotics teams reduce integration risk with documented actuator & motor parameters
Contact for pricingBackorder
- Ships from San Francisco
- Authorized distributor
- In-house support
Key Specifications
100
Permissible Peak Torque (Start/Stop) (Nm)
1 kg
Net weight
54
Rated Torque At 2000 R/Min (Nm)
All Specifications
BrandPY TECHNOLOGY
CategoryActuator & Motor
AvailabilityBackorder
Net weight1 kg
ModelHBJ-32
Reduction Ratio30
Weight (Kg)3
Backlash (Arc Sec)≤20
Moment Of Inertia (×10⁴ Kg·Cm²)1.69
Moment Of Inertia (×10⁵ Kgf·M·S²)1.72
Rated Torque At 2000 R/Min (Nm)54
Rated Torque At 2000 R/Min (Kgf·M)5.5
Permissible Peak Torque (Start/Stop) (Nm)100
Permissible Peak Torque (Start/Stop) (Kgf·M)10
Allowable Average Load Torque (Nm)75
Allowable Average Load Torque (Kgf·M)7.7
Instantaneous Permissible Maximum Torque (Nm)200
Instantaneous Permissible Maximum Torque (Kgf·M)20
Permissible Max Input Speed (Oil Lubrication) (R/Min)7000
Permissible Max Input Speed (Grease Lubrication) (R/Min)4800
Permissible Average Input Speed (Oil Lubrication) (R/Min)4600
Permissible Average Input Speed (Grease Lubrication) (R/Min)3500
